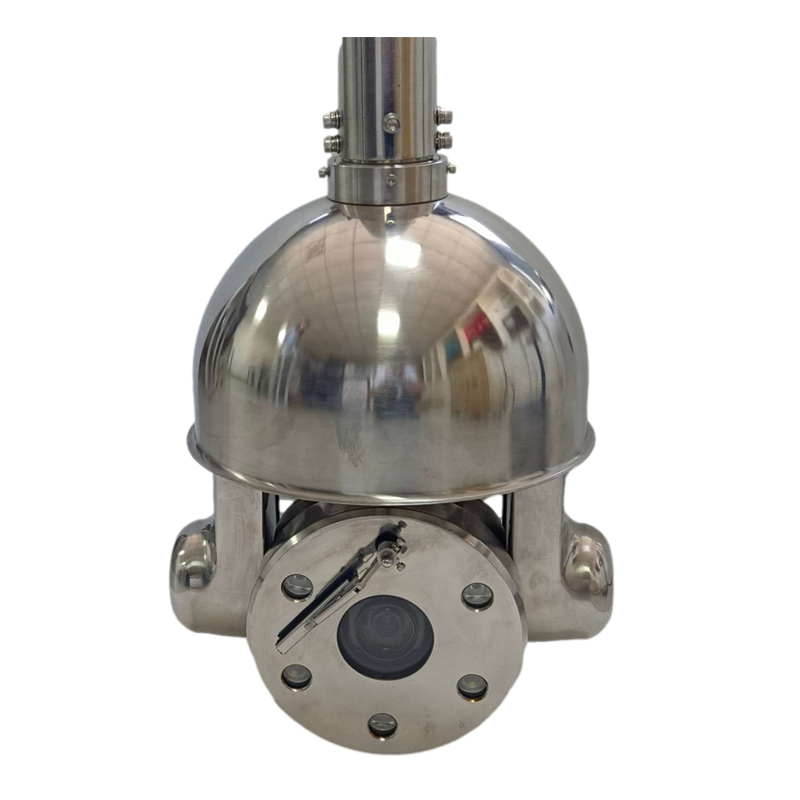

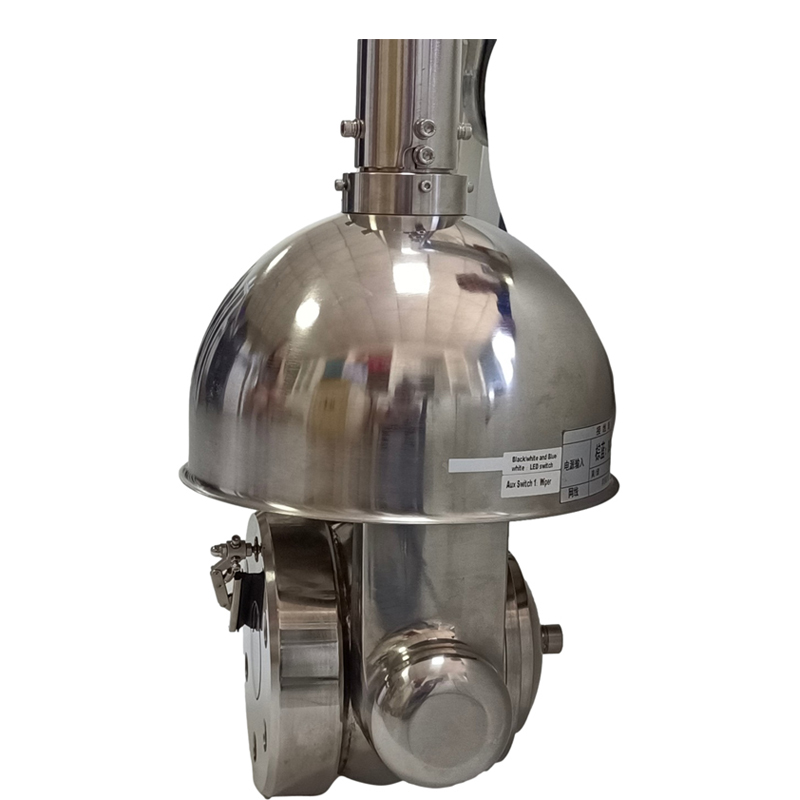

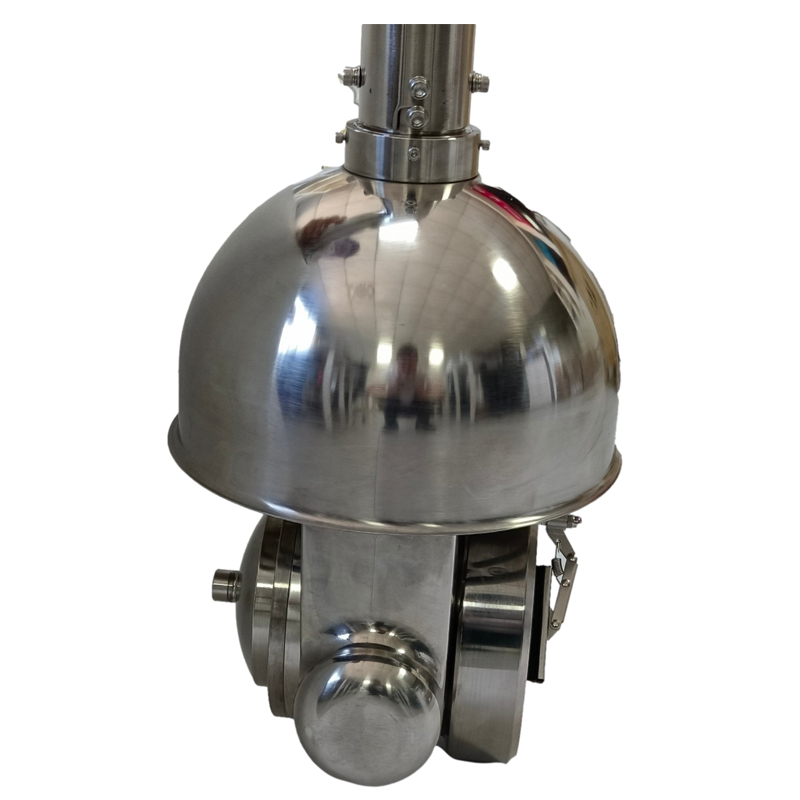

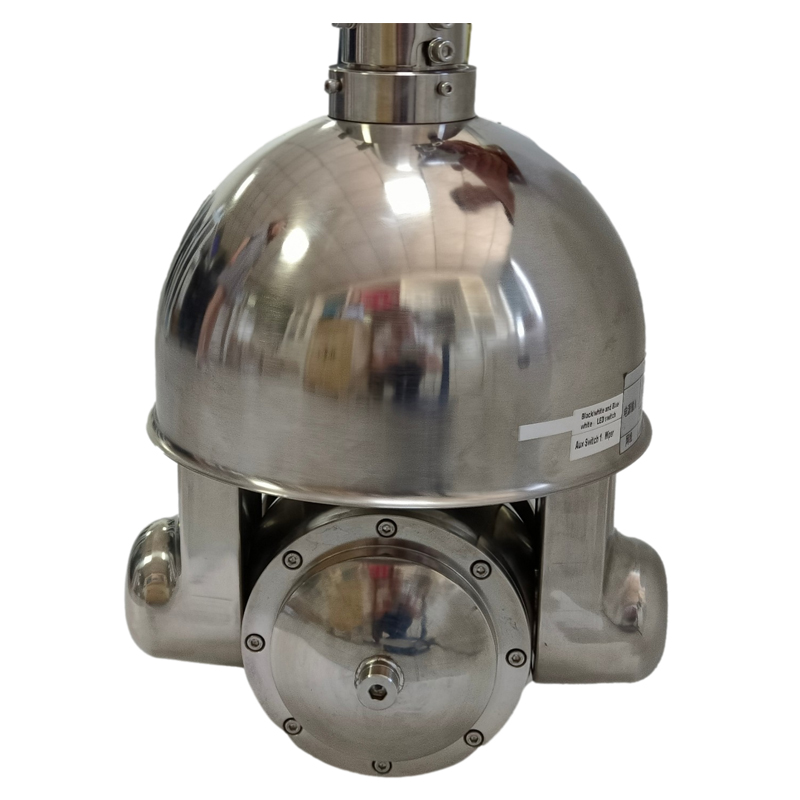

EC-IP6030U

5MP IP Underwater High Speed Dome POE Camera

Key features：

● 1/2.7 inch 5Megapixel progressive scan CMOS Sensor
● 5MP 592*1944@15fps;4MP 2560*1440@25fps;3MP 2048*1536@25fps
● IP68, POE Max. water depth: 30m
● Focus f=5-90mm(F1.8-3.2)18X18 zoom
● Multiple network monitoring: Web viewer, CMS
● Max.128 preset.support preset recover if power off or dislocationHousing
● material: stainless steel 316L
● Attachment bar: adjustable by 180
● Toughened safety glass (ESG)
● TVS lightning protection to avoid 1.5KW thunderstrike

Model		EC-IP6030U
Camera Type		Underwater IP White light 7" High Speed Dome POE IP Camera
Camera	Image Sensor	1/2.7" 5MP scan CMOS Sensor
	Main stream	5MP 25921944@15fps;4MP 25601440@25fps;3MP 2048*1536@25fps
	Substream	704*576@25fps
	Min.Illumination	Color 0.5Lux/F1.4
	Electronic Shutter	1/50(1/60)s-1/100,000s
	Lens	5-90mm(F1.8-3.2)18X18 zoom
	Lens Mount	M12/CS Mount
	Material	stainless steel 316L
Compression	Compression Standard	H.265++/H.265+/H.265/H.264
	Video Frames	PAL/NTSC 5MP@1~15FPS
	Video stream output	Support adjustable stream 0.1M ~ 10Mpbs
Image	Quality	3D-DNR,BLC,AWB,auto ISO
	Resolution	Main Stream:
		5MP 25921944@15fps;4MP 25601440@25fps;3MP 2048*1536@25fps,2MP 1920×1080@30fps;1280×720@30fps
		Sub Stream:640×360,720×480(1-30fps)
Network	Parameter Settings	WEB configure and OSD supported, Real time recording,
	Parameter Settings	Transmission and playback
	Basic	Dual stream, Password protection
	Protocol	HTTP/Onvif/DHCP/DDNS/NTP
	Alarm	Support Motion Detection, Linkage Alarm, Linkage recording,
	Alarm	Sensor trigger alarm functions
Interface	Video Output	RJ45
Interface	Network Interface	1 RJ45 Ethernet interface, 10/100M adaptation
PTZ	Pan / tilt	Pan 360 degree , Tilt 30degree ;Tilt 0.1-30degree/s; Pan 30degree/s
PTZ	Manual Speed	2s ~10s continuously adjutable
Other	Work Environment	-10°C- +60°C
	Waterproof Criterion	IP68
	Power Supply	POE IEEE802.3at/af
	Size	320x240x420mm
	Cable	CAT6
	Net Weight	N.W.19kg +cable 0.12kg/m
