IM50L35

Image sensor

Sensor

1/2.8” 5MP CMOS Sony IMX335

Maximum resolution

2592x1944@30fps

Minimum illumination

Color：0.05Lux B/W：0.01Lux

Camera

AGC

Auto/Manual

S/N ratio

≥50dB（AGC OFF）

Shutter speed

1/2 - 1/20 ,000s，Slow shutter support

Wide dynamic range

Digital WDR≥73.7dB

Exposure mode

Auto/ Manual/shutter mode

White balance

Auto/ Manual /ATW/ Indoor/Outdoor/ lamp

Day & Night

External control（IR Cut Filter）

Image resolution

Main stream

2592*1944/1080P/720P@30fps

2560*1440/2480*1520/2304*1296/1080P/720P@25fps

Sub stream

D1/VGA/640*360/480*360/CIF@25fps；

General protocol

Network protocol

TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP

ONVIF protocol

Standard  ONVIF

Network interface

Wired

1ch 10/100BaseT Ethernet，RJ45 interface

Other

Power supply

12VDC

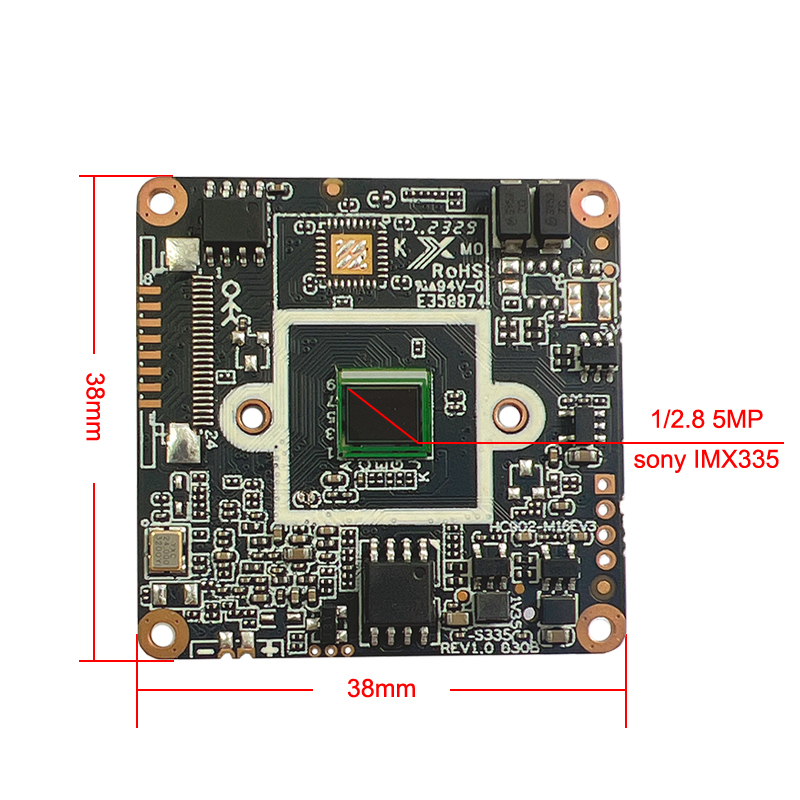

Size

38x38mm

Operation temperature

-30°C ~85°C

Working humidity

≤90%RH(non-condensing)
