Models

IM50L35

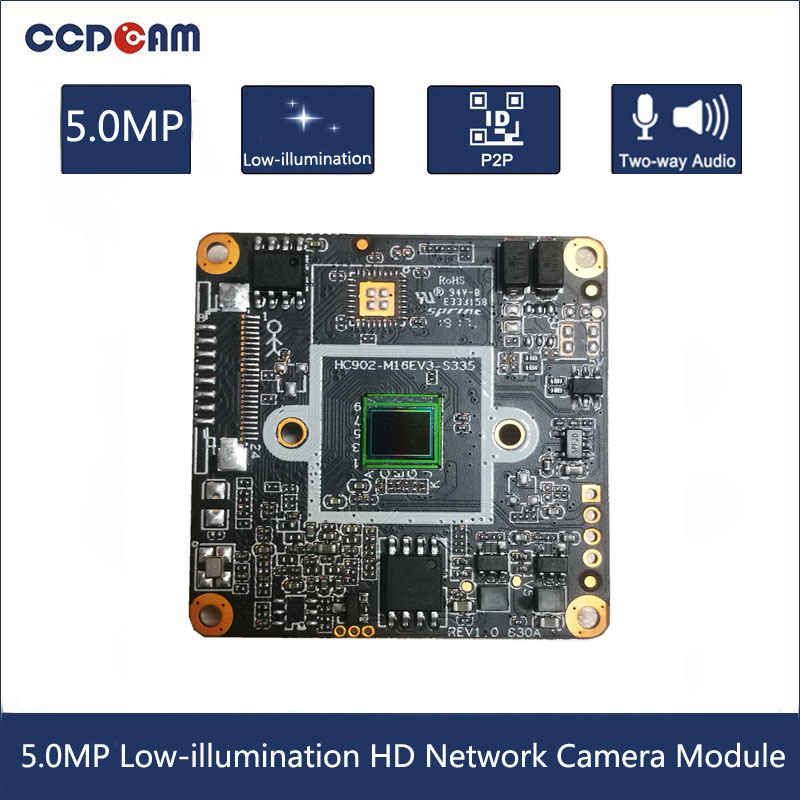

5.0MP Low-illumination HD Network Camera Module

Image Sensor

1/2.8" 5.0M Pixels Progressive Scan CMOS

Min. Illumination

Color：0.05Lux@(F1.2，AGC ON)   B/W：0.01Lux@(F1.2，AGC ON)

AGC

Auto / Manual

S/N Ratio

≥50dB（AGC OFF）

Shutter Speed

1/2 - 1/20,000s

Wide Dynamic Range

Digital WDR,≥73.7dB

Digital noise Reduction

DNR,3DNR

Exposure Mode

Auto/Manual/shutter mode（shutter range variable）

White Balance

Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

Day & Night

Day / Night / External control（IR Cut Filter）

Video Compression

H.265/H.264 Main Profile /M-JPEG

Audio Compression

G711，PCM

Max. Image Resolution

2592*1944

Image Resolution

Main stream

2592*1944,1-15fps；2592*1520，1-22fps；2304*1296，1-25(30)fps；1920*1080，1-25(30)fps

Sub-stream

640*480，1-25(30)fps；480*3601-25(30)fps；352*288，1-25(30)fps；176*144，1-25(30)fps

MJPEG

1920*1080、1280*720、Close

Streams

Dual streams

Bitrate

CBR/VBR, bitrate：32Kbps~10Mbps variable

Simultaneous Live View

Main stream Up to 3,Sub-stream Up to 6

OSD

Support camera name、time display .etc，OSD position can be adjusted

Motion detect

Support

Privacy Masking

4 privacy masks programmable

P2P

Android、IOS

Protocols

TCP/IP，HTTP，NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P

Onvif

Onvif 2.4

Network

10/100M Base-TX Ethernet, RJ45 Connector

Mini SD Card

Support,up to 128GB

Video Output

Unsupport

Alarm I/O

Support(Optional)

Audio I/O

1 input (Linear level, Resistance: 1000 Ohm);  1 output (Linear level, Resistance: 600 Ohm);

USB

Support wifi/4G USB module(Optional)

Protection Level

TVS 4,000V lightning protection

Power Supply

12VDC@0.1A

Dimensions

38x38mm

Working Temperature

-10°C ~50°C, Humidity≤90%RH(Unsupport-condensing)
