TG8256B
TG8256B Thermal&Optical Bi-spectrum Network Camera,Which is capable of highly accurate body temperature measurement, to within ±0.3 °C,The camera features a built-in AI algorithm for multi-person measurements up to 3m distance，enabling fast and non-contact access.Perfect for adjunct use inhospitals, sub-acute health settings, public areas(i.e. airports), and more.Also can be widely used in close-range scene monitoring,such as indoor fire prevention, warehouse fire prevention, charging pile temperature monitoring and other fields.
Key features:
• High sensitivity sensor with 256 x 192 thermal resolution;
• NETD is less than 60mk (@25° C, F#=1.0);
• Temperature detection rang:-15° C-150° C; precision:min ± 0.3 °C;
• Up to 15 palettes of adjustable color;
• Support real-time display and overlay of human body temperature OSD;
• 1/2.8” 2.0M CMOS Sensor;
• High quality imaging with 1920X1080@30fps resolution;
• Support for multi-person detection;
• Support 1*HDMI Output to HD TV.

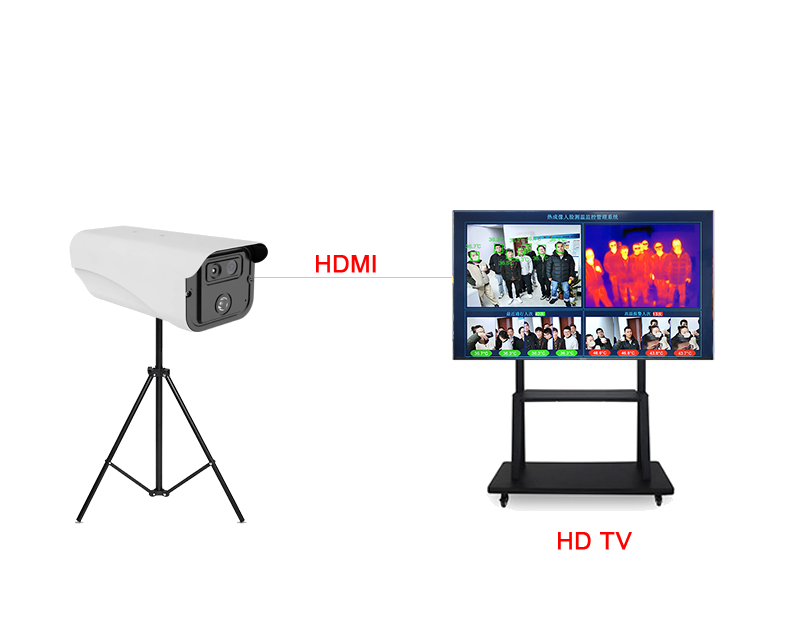

Sloutions
.png)

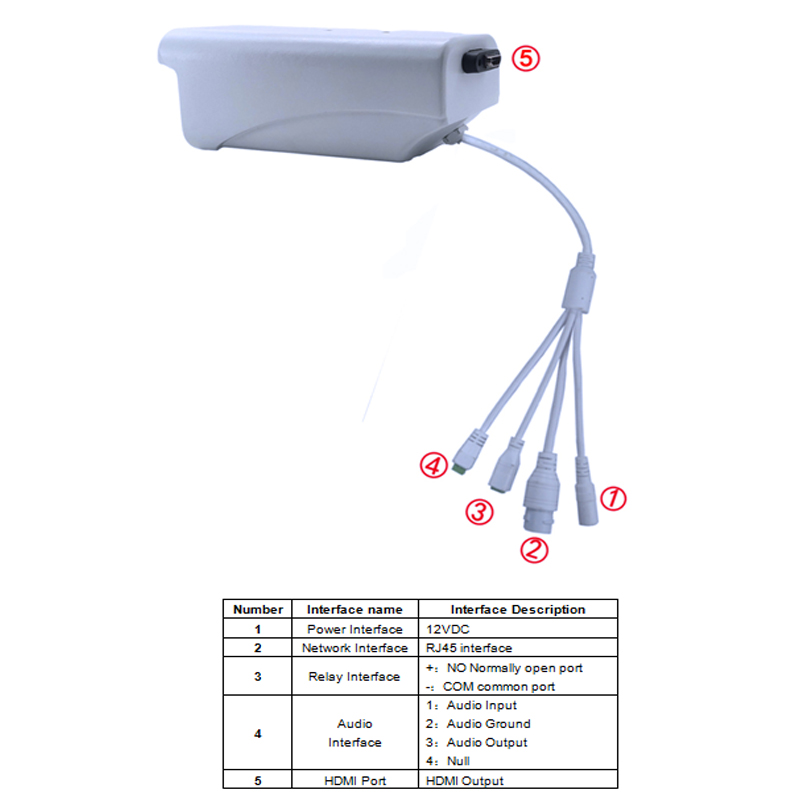

Interface
.jpg)

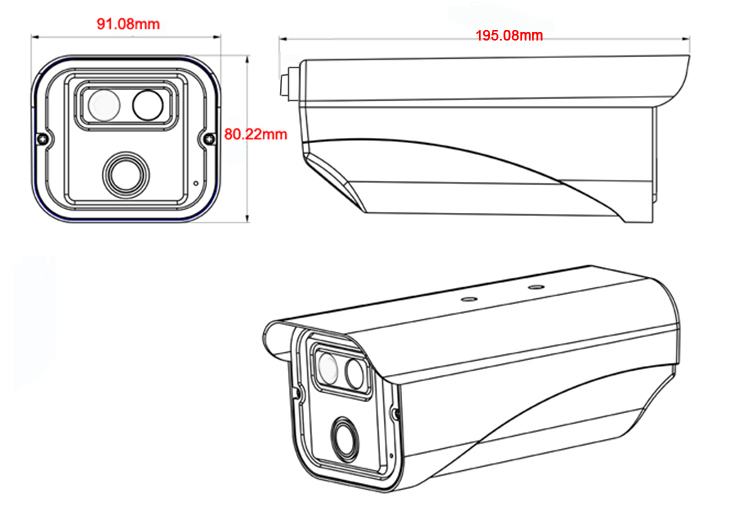

Dimensions
.jpg)
|
Mode |
TG8256B |
|
|
Thermal |
||
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
|
|
Resolution |
256×192 |
|
|
Pixel Interval |
12μm |
|
|
NETD |
Less than 60 mK (@25°C,F#=1.1) |
|
|
Aperture |
F1.0 |
|
|
Field of View |
56° × 42° (H × V) |
|
|
Optical |
||
|
Image Sensor |
1/2.8" 2.0M Pixel CMOS |
|
|
Resolution |
1920×1080P |
|
|
Min. Illumination |
Color: 0.005Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON) |
|
|
Field of View |
84° × 45° (H × V) |
|
|
Focal Length |
4mm |
|
|
Shutter Speed |
1s to 1/100,000s |
|
|
White Balance |
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp |
|
|
Day & Night |
ModeIR cut filter with auto switch |
|
|
WDR |
80 dB |
|
|
Smart Function |
||
|
Face snapping |
Built-in deep learning AI algorithm, Supports simultaneous detection of 20-30 faces |
|
|
Temperature Measurement |
Support global and local temperature |
|
|
Temperature Range |
From -15°C to +150°C |
|
|
Temperature Accuracy |
Target temperature 35°C ^ 38°C ±0.3 °C |
|
|
Network |
||
|
Main Stream |
Optical: 25fps(1920 × 1080, 1280 × 720) |
|
|
Sub Stream |
Thermal: 25fps(704 × 576, 352 × 288) |
|
|
Video Compression |
H.264 (Baseline/Main/High Profile) /MJPEG/H.265 |
|
|
Audio Compression |
G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
|
|
Protocols |
TCP/IP, ONVIF, GB/T 28181, DHCP, RTP, RTSP, PPPoE, UPnP, UDP |
|
|
API |
ONVIF (Profile S, Profile G, Profile T), SDK |
|
|
General |
||
|
Web Client Language |
languages English, Chinese |
|
|
Power |
DC 12V, 0.65A |
|
|
Work Temperature/Humidity |
From -20°C to 55°C; Humidity: 95% or Less |
|
|
Protection Level |
IP65 |
|
|
Dimension |
246 mm × 101 mm × 81 mm (with bracket) |
|
|
Weight |
Approx. 1.0 kg |
|
