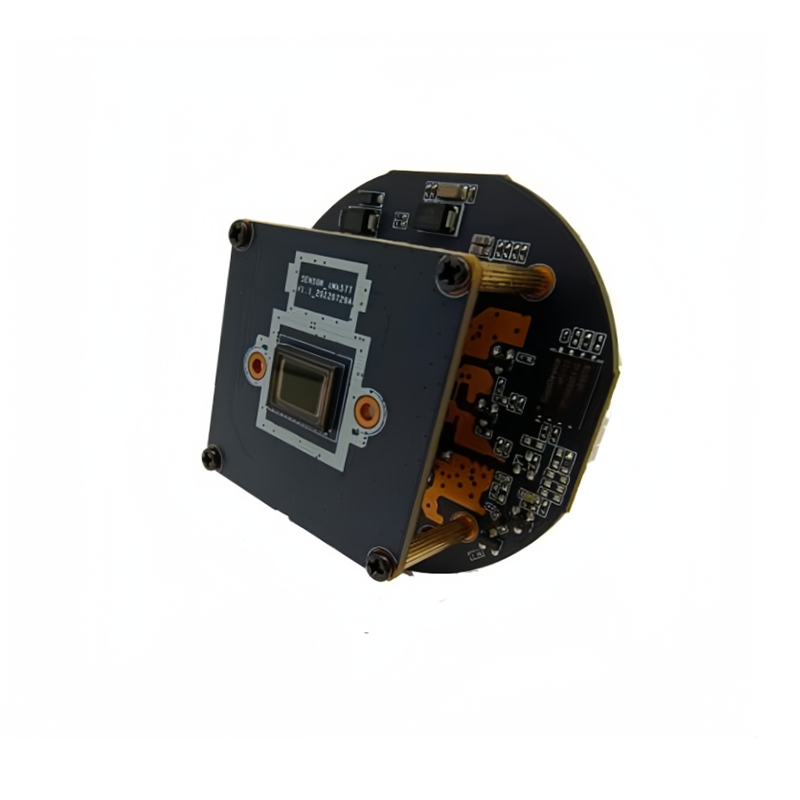

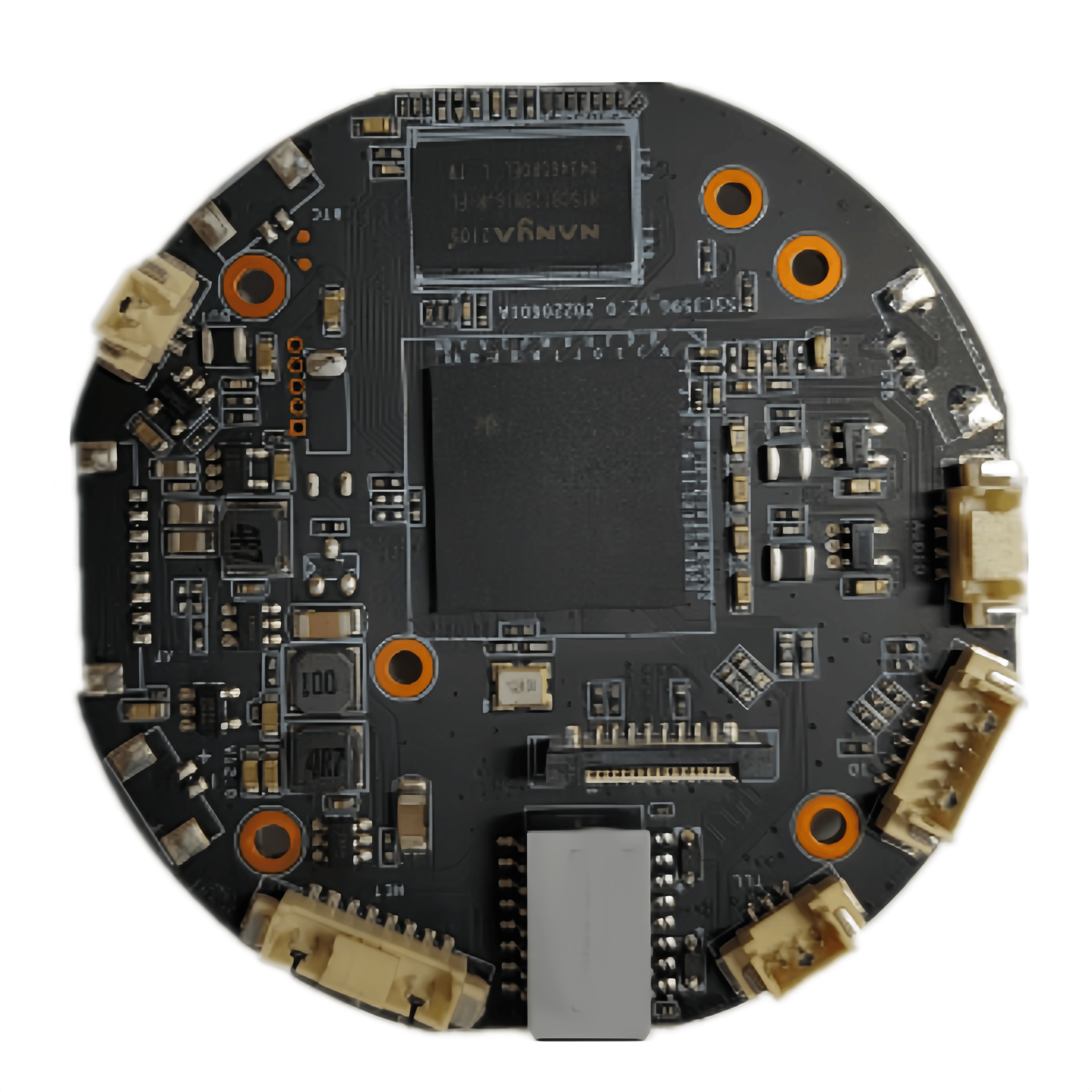

IMA12S

● 1/2 .3” 12MP CMOS Sony IMX577 Sensor

● Maximum resolution up to 4000x3000@25fps

● True Day/Night, 3D DNR, Digital WDR

● Support out-of-bounds detection ,enter area and leave intrusion detection

● Support CDS control and PWM control

● Support the P2P on Android, IOS

● Support two way audio

● Support ONVIF2.6

● Support TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP

IMA12S
Image sensor
Sensor	1/2.3" 12MP IMX577 CMOS
Maximum resolution	4000x3000@25fp
Minimum illumination	Color：0.01Lux，B/W：0.005Lux
Camera
AGC	Auto/Manual
S/N ratio	≥120dB（AGC OFF）
Shutter speed	1/2 - 1/20 ,000s，Slow shutter support
Wide dynamic range	Digital WDR
Exposure mode	Auto/ Manual/shutter mode
White balance	Auto/ Manual /ATW/ Indoor/Outdoor/ lamp
Day & Night	External control（IR Cut Filter）
Image resolution
Main stream	4000 × 3000@25fps ,3840 ×2160@30fps
Sub stream	720×480/D1/VGA/640×360@30fps
Network interface
Wired	1ch 10/100BaseT Ethernet，RJ45 interface
Other
Power supply	12VDC
Size	38x38mm
Work Temperature	-30 ° C ~85 ° C
Working humidity	≤90% RH（non-condensing）
