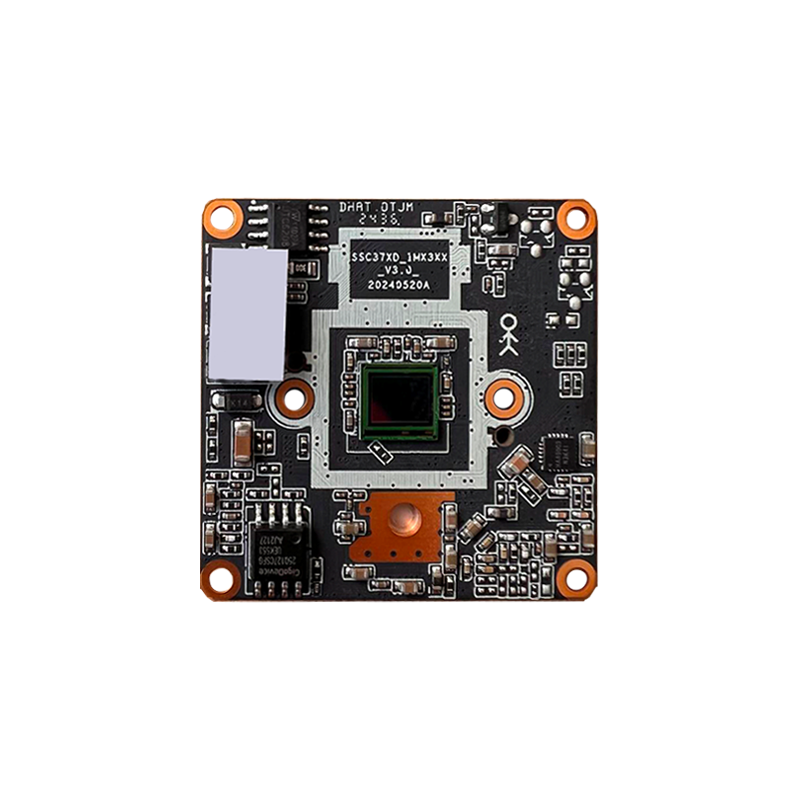

IMA50L12D

● 1/2.8" 5MP CMOS.

● Powered by Sigmastar SSC377DE SOC

● Support HEVC, H.264 encoding.

● Support Soft light sensitivity: Dual-light mode, Full-color mode, Infrared mode.

● Support Precise human detection, region detection, and tripwire detection.

● Support Two way audio, Voice broadcast, Custom voice messages.

● Support HDR,Image flip, Digital wide dynamic range.

● Support ONVIF protocol

● Support IP address Filtering, Block lists.

● Provide SDK (WINDOWS, Android, Linux) development

● Support TF card, WIFI, 4G, IO Alarm 1 channel input and output.

Image sensor
Model	IMA50L12D
SOC	SSC377D
Sensor	1/2.8" 5MP CMOS IMX335
Maximum resolution	2592*1944@25fps
Minimum illumination	0.01Lux
Camera
AGC	Auto/Manual
S/N ratio	≥52 dB
Shutter Speed	1/2 - 1/20 ,000s，Slow shutter support
Wide dynamic range	≥75 dB
Exposure mode	Auto/ Manual/
White balance	Auto/ Manual
Day & Night	External control（IR Cut Filter）
Image resolution
Main stream	25FPS@(2592×1944/2560×1440/2304×1296/1920×1080/1280×720/1944×1944/1200×1200)
Sub stream	640*360/VGA/D1
Audio resolution
Audio Out/In	Supported/Wired required
Audio processing	G.711 codec standard
Protocol
Network protocol	HTTP/RTSP/DHCP/NTP/ONVIF etc

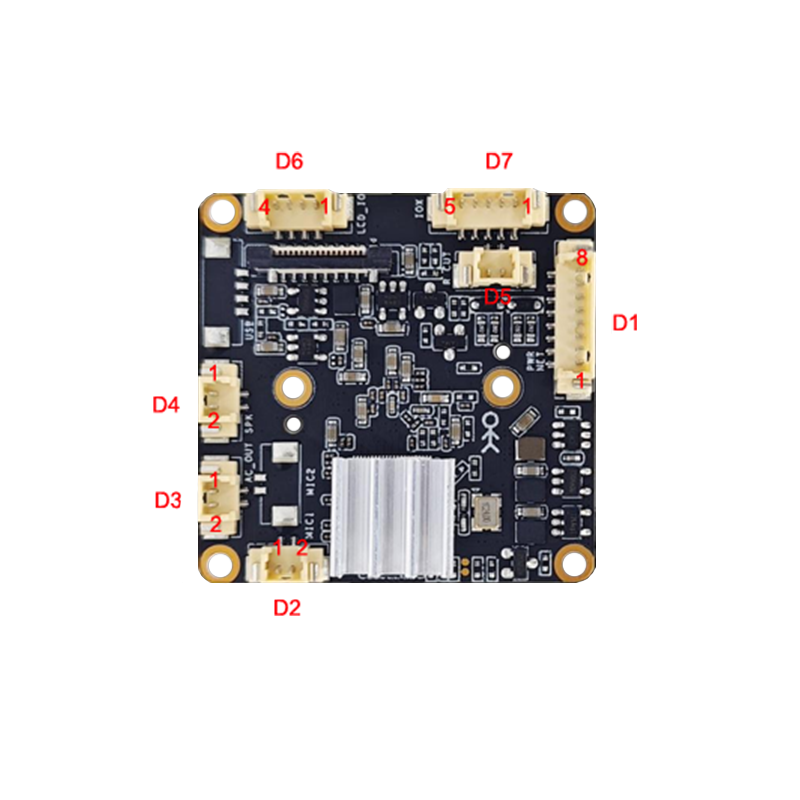

Interface
Network interface	10/100Mps Base-T Ethernet, 1*RJ45 interface
IRCUT interface	Integrated IRCUT/ Smart IR Control
Light board interface	PWM yellow light / Smart LED Light Control
Storage interface	TF card up to 512GB
Extra interface	RS232
General
Power supply	DC 12V 1.56w 130mA protected from lightning
Additional functions	OSD supported/Two way audio/Support audio and video synchronously /voice alarm/ Accurate human detection, Dual-light alarm.
Standard	International: IEC61000-4-5 China: GB/T17626.5

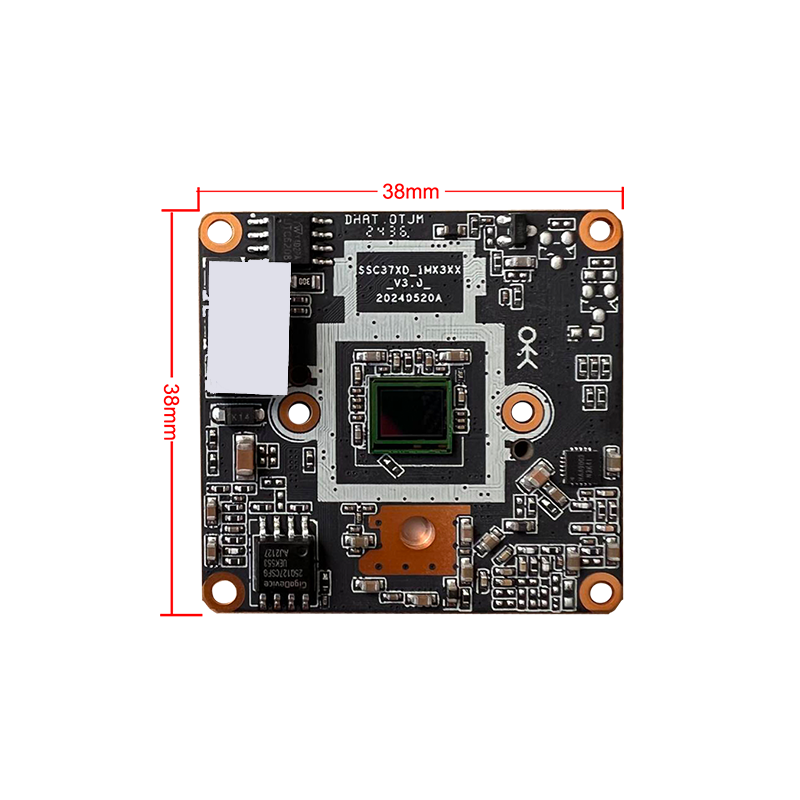

Size	(L)38mm * (W)38mm
Operation temperature	-40°C~+65°C
Working humidity	≤90% RH（non-condensing）
