Model

MT-S15

Main Chip

SSC377D，built-in 1T computing power

Image Sensor

5MP, 1/2.8"CMOS

Image Output

Main stream 30FPS（2576*1944,2048*1536,1600*1200，1024*768）

Sub stream 30FPS（800*600,320*240）

Image effects: Auto white balance, digital wide dynamic range, backlight compensation,

and adjustable hue/brightness/contrast/saturation/sharpness

Audio

Standard: 1-channel Line In input, 1-channel built-in amplifier output (8Ω1W/4Ω2W)

G.711 codec; supports two-way audio intercom, audio-video synchronization, and echo cancellation

Network

1 x RJ45 10/100 M self-adaptive Ethernet port

TF

1 x TF card slot, supports up to 512 GB

WIFI（Optional）

Supports external Wi-Fi 4/6 module, dual-band, 802.11b/g/n/ax

4G（Optional）

Supports external 4G communication module

Reset Key

Supports hardware reset

IO Input/0utput

1 x Input, 1 x Output

Light Board Interface

Supports dual light and smart dimming

Indicator

Supports network connection status LED

Network Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,NTP,UPnP,SMTP,IGMP,802.1X,IPv4,IPv6,UDP,SSL/TLS,SNMP,ARP,WebSocket,ONVIF

Standard

Human & vehicle classification (including non-motor vehicles), boundary detection,intrusion detection, region entering detection, region exiting detection and sound alarm linkage

Optional

Face capture, face recognition, pet detection, lane violation control, license platerecognition, baby detection, abnormal sound detection, occlusion detection, electronic fence, off-post detection, people counting, custom voice alarm

Power Supply

DC12V

Operating Conditions

-30-65℃

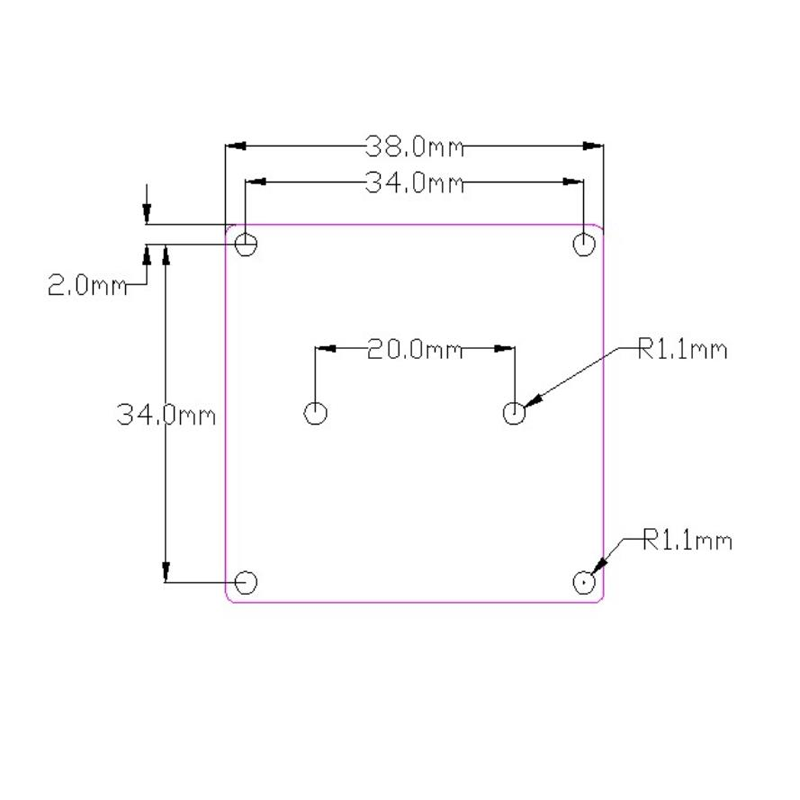

Dimension

38*38mm
