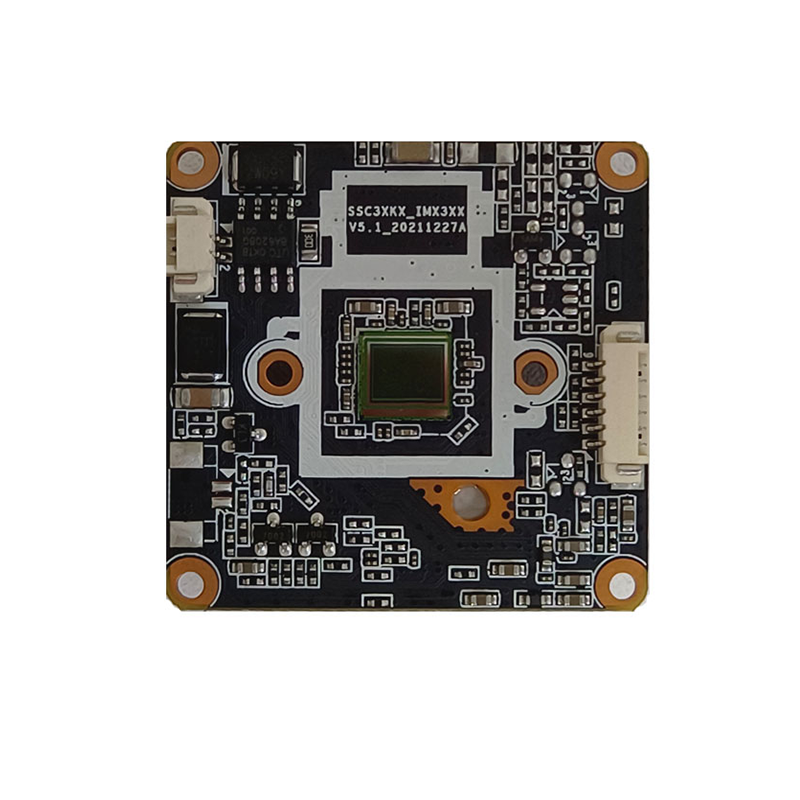

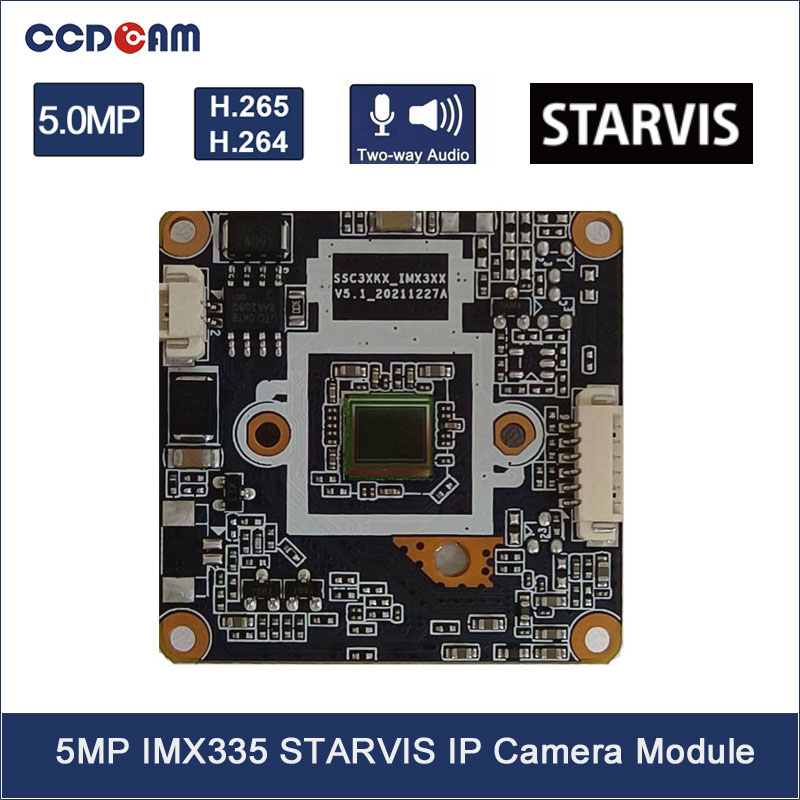

IMA50L12

● 1/2.8” 5MP Sony IMX335 CMOS Sensor;
● Maximum resolution up to 2592x1944@30fps
● 2592x1944 HD resolution;
● Embedded Web Server, support Internet Explore monitoring,configuration, upgrade;
● Support sub domain, easily to implement DHCP (ADSL dial-up);
● Support Danale APP on Android, IOS by P2P;
● Support ONVIF Protocol;
● Support AI human detection, Area detection;

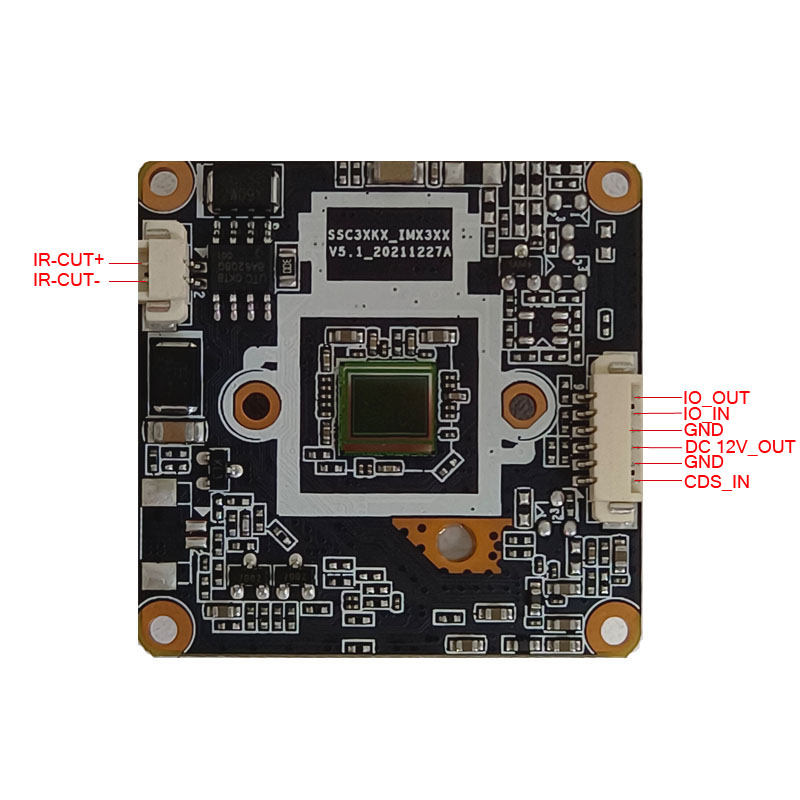

● Support CDS control and PWM control two lighting modes;
● Standard SDK(Linux,Windows)，easily to be integrated with other digital systems.

IMA50L12
Image Sensor
Sensor	1/2.8” 5.0MP CMOS Sony IMX335
Maximum resolution	2592x1944@30fps
Minimum illumination	Color：0.01Lux
Camera
AGC	Auto/Manual
S/N ratio	≥50dB（AGC OFF）
Shutter speed	1/2 - 1/20 ,000s，Slow shutter support
Wide dynamic range	Digital WDR
Day/Night Mode
Exposure mode	Auto/ Manual/shutter mode
White balance	Auto/ Manual /ATW/ Indoor/Outdoor/ lamp
Day & night	External control（IR Cut Filter）
Image resolution
Main stream	3840 ×2160/3072x2048/2592x1944@30fps
Sub stream	640×480/480x360/352×288/176×144@30fps
General protocol
Network protocol	TCP/IP，HTTP，NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P
ONVIF protocol	Standard ONVIF
Network interface

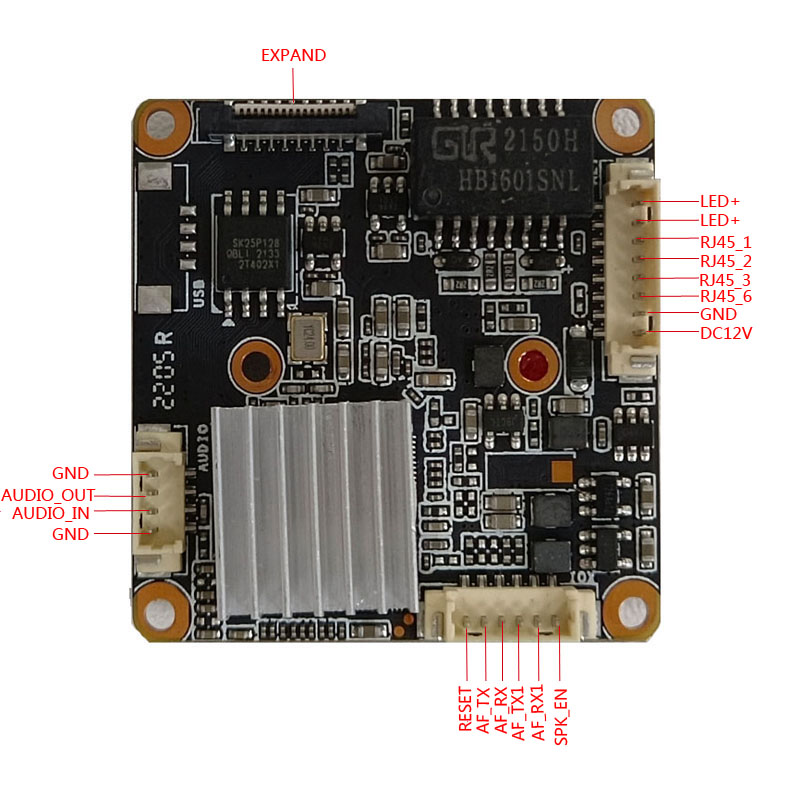

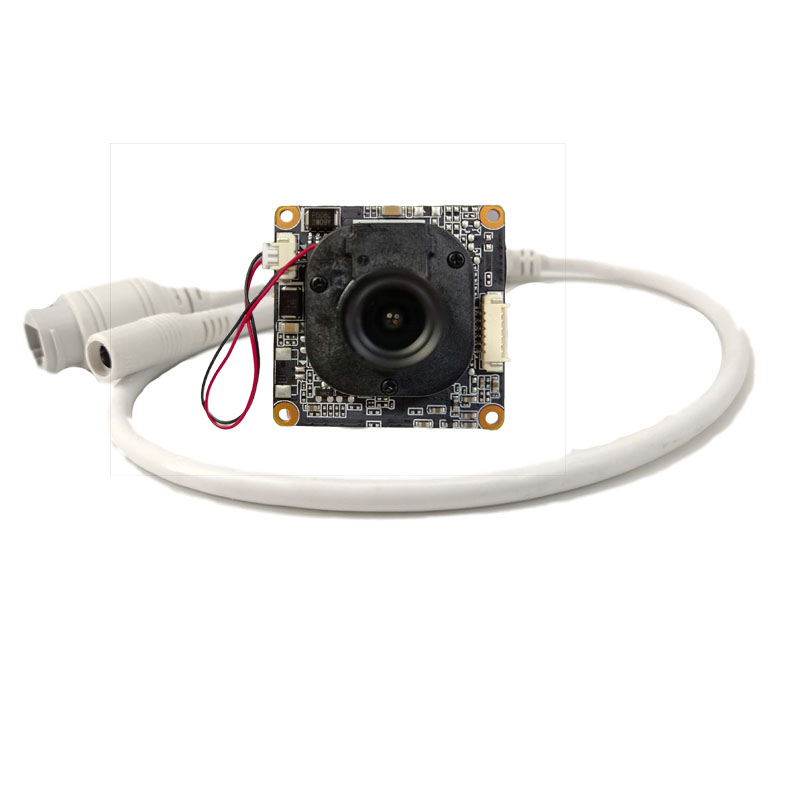

Wired	1ch 10/100BaseT Ethernet，RJ45 interface
Other
Power supply	12VDC

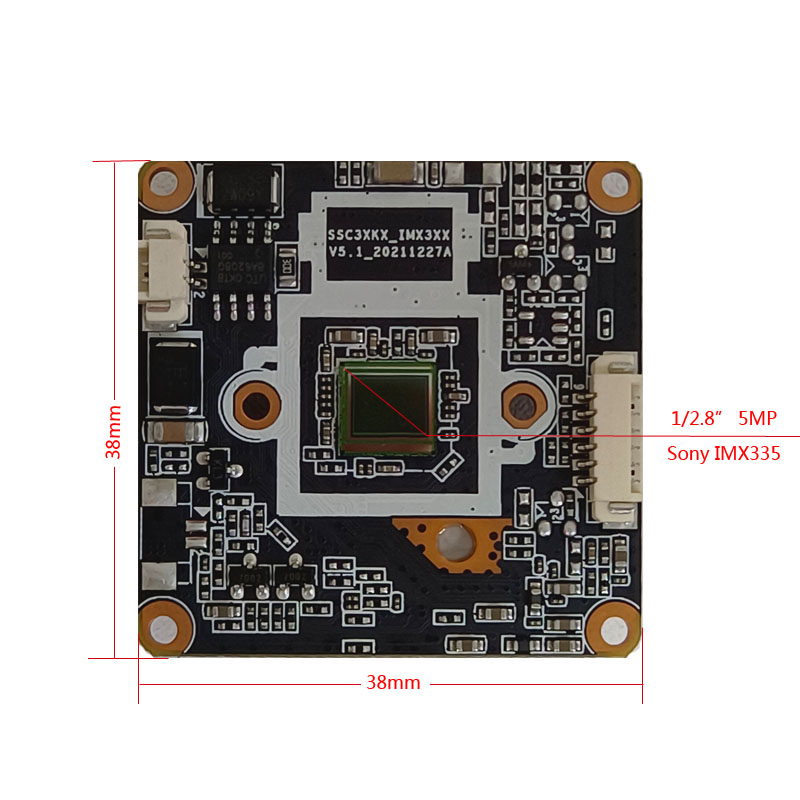

Size	38x38mm
Operation temperature	-30°C ~85°C,
Working humidity	Humidity≤90%RH(no condensation)
