MC-K12 5MP AI Smart IPC Module - Shenzhen CCDCAM Technology Co.,Ltd

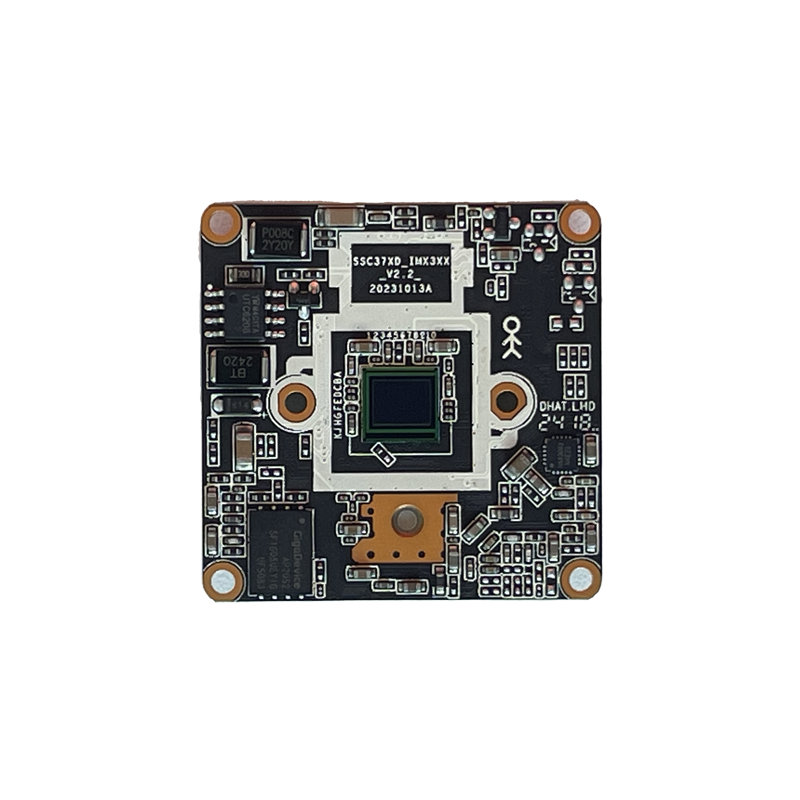

● 1/2" 5MP CMOS Sony IMX335

● Powered by Sigmastar SSC377D

● Support H.265+, H.265, H.264 encoding

● Support Soft light sensitivity: Dual-light mode, Full-color mode, Infrared mode

● Support Intelligent analysis: Face detection algorithm, Perimeter alert

● Support Two way audio, Voice broadcast, Custom voice messages

● Support HDR,Image flip, Digital wide dynamic range

● Support ONVIF Protocol

● Support IP address Filtering, Block lists

● Support Auto-focus and PTZ

● Support TF card, WIFI, 4G, IO Alarm 1 channel input and output

Image sensor
Model	MC-K12
SOC	SSC377D
Sensor	1/2.8" 5MP CMOS IMX335
Maximum resolution	2592*1944@25fps
Minimum illumination	0.01Lux
Camera
AGC
S/N ratio	≥52 dB
Shutter Speed
Wide dynamic range	≥75 dB
Exposure mode	Auto/ Manual/
White balance	Auto/ Manual
Day & Night
Image resolution
Main stream	25FPS@(2592×1944/2560×1440/2304×1296/1920×1080/1280×720/1944×1944/1200×1200)
Sub stream	640*360/VGA/D1
Audio resolution
Audio Out/In	Supported/Wired required
Audio processing	G.711 codec standard

Protocol
Network protocol	HTTP/RTSP/DHCP/NTP/ONVIF etc

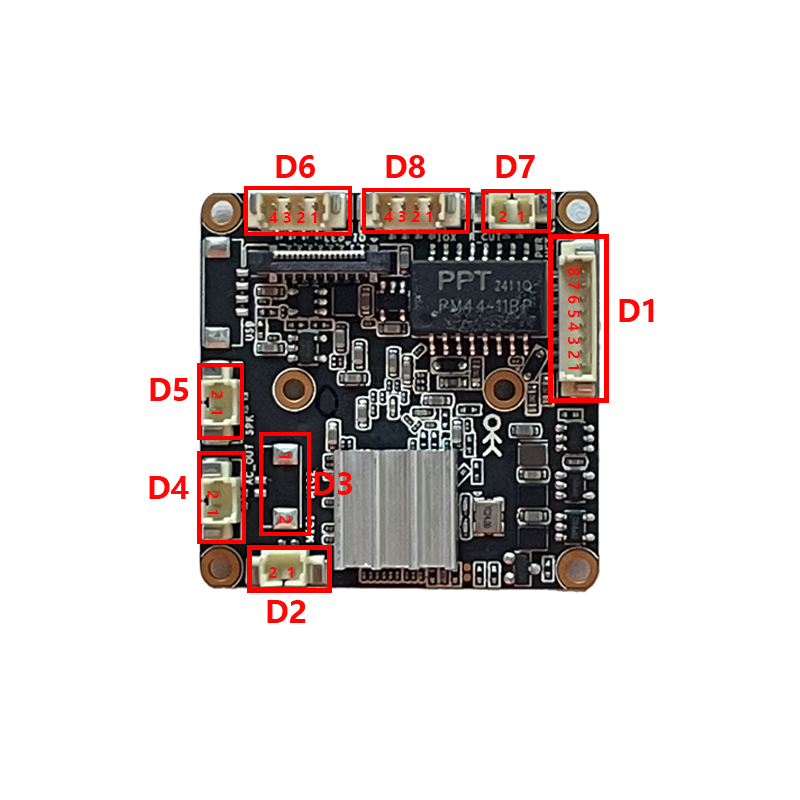

Interface
Network interface	10/100Mps Base-T Ethernet, 1*RJ45 interface
IRCUT interface	Integrated IRCUT/ Smart IR Control
Light board interface	PWM yellow light / Smart LED Light Control
Storage interface	TF card up to 512GB
Extra interface	RS232
General
Power supply	DC12V 1.56w 130mA protected from lightning
Additional functions	OSD supported/Two way audio/Support audio and video synchronously /voice alarm/ Accurate human detection, Dual-light alarm.
Standard	International: IEC61000-4-5 China: GB/T17626.5

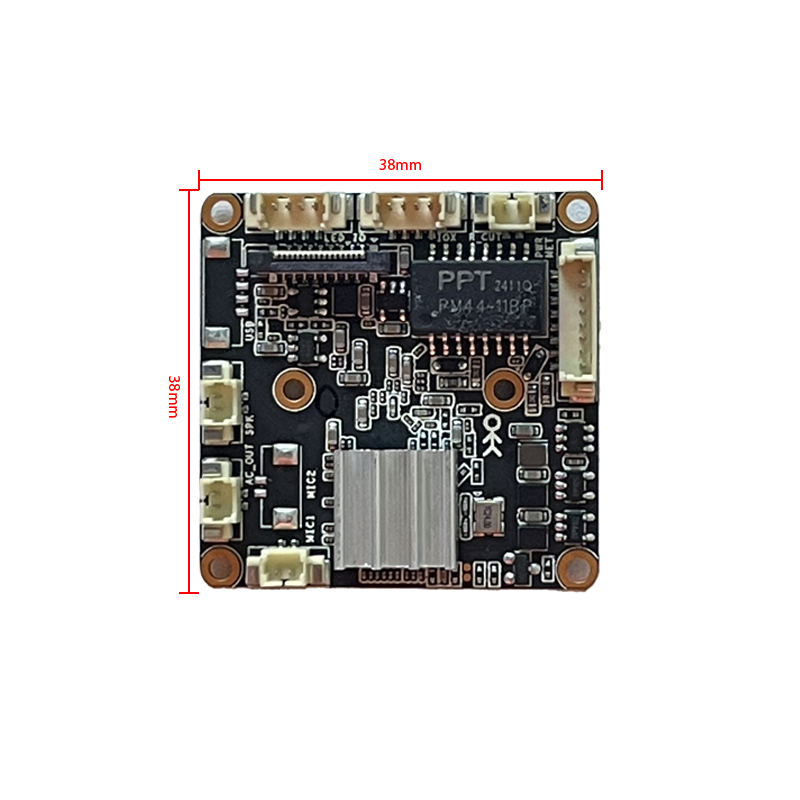

Size	(L)38mm * (W)38mm
Operation temperature	-40°C~+65°C
Working humidity	≤90% RH（non-condensing）

Data Sheet: MC-K12 5MP SSC377D+IMX335(1).pdf
