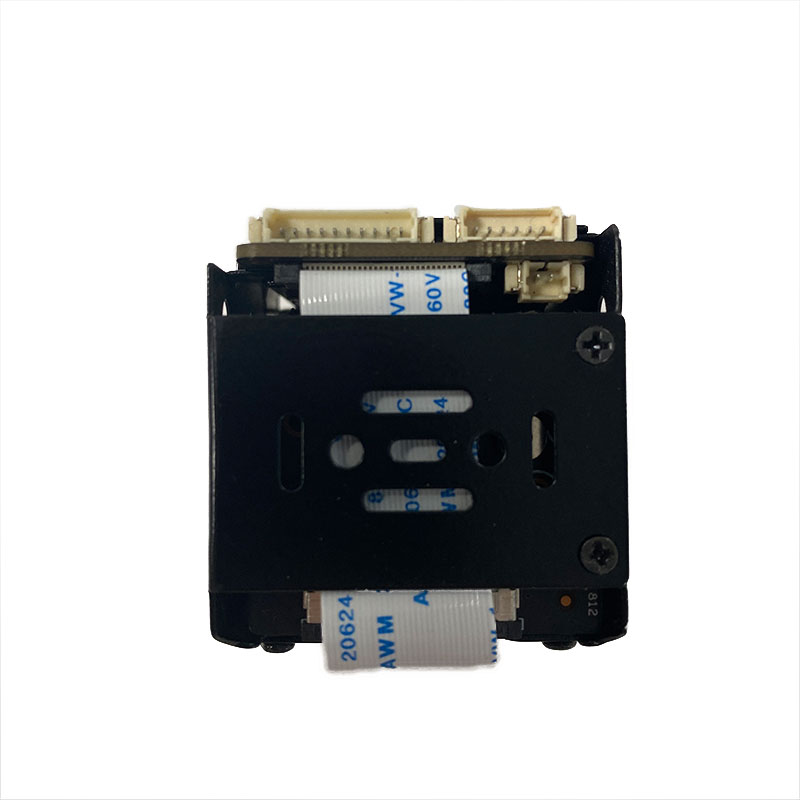

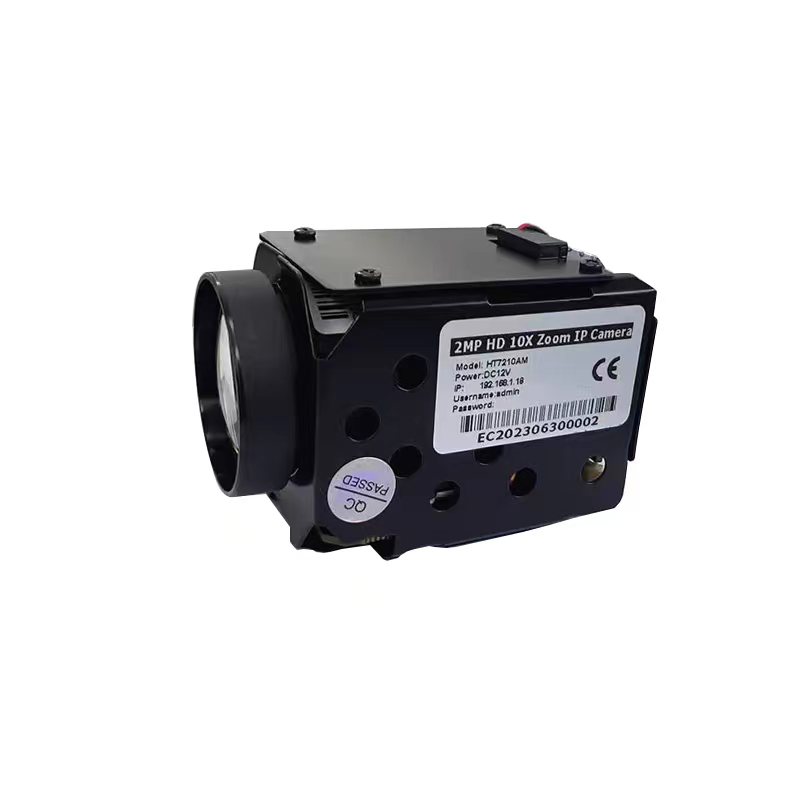

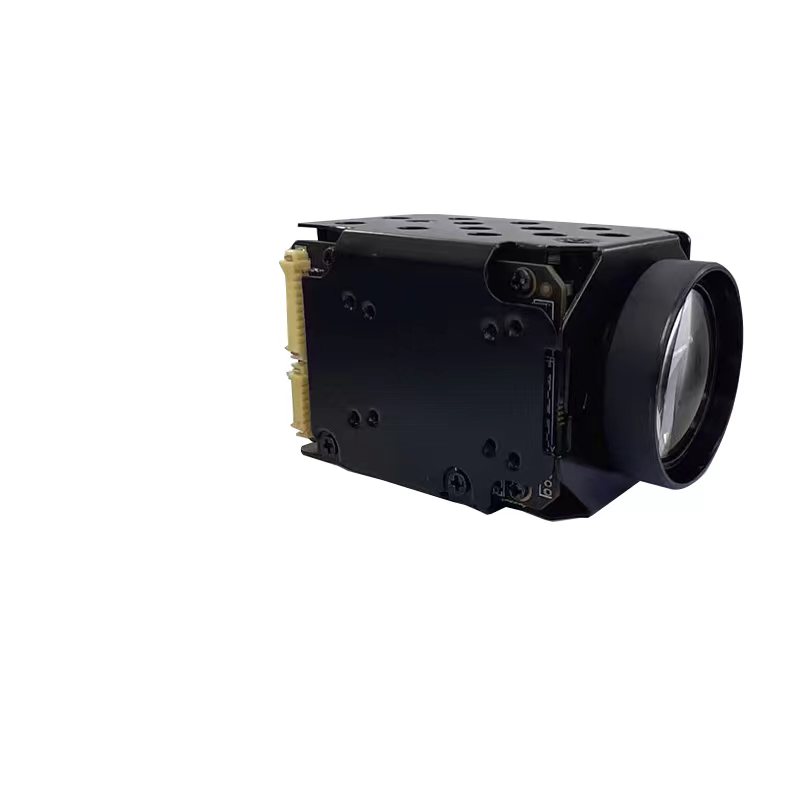

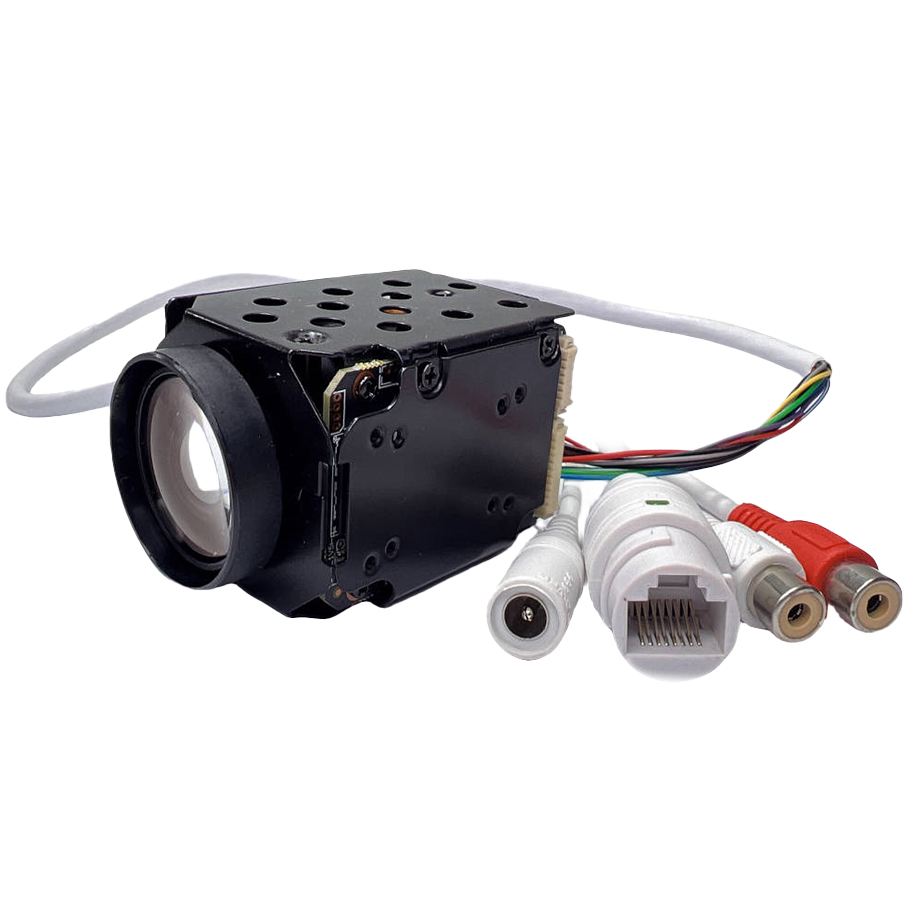

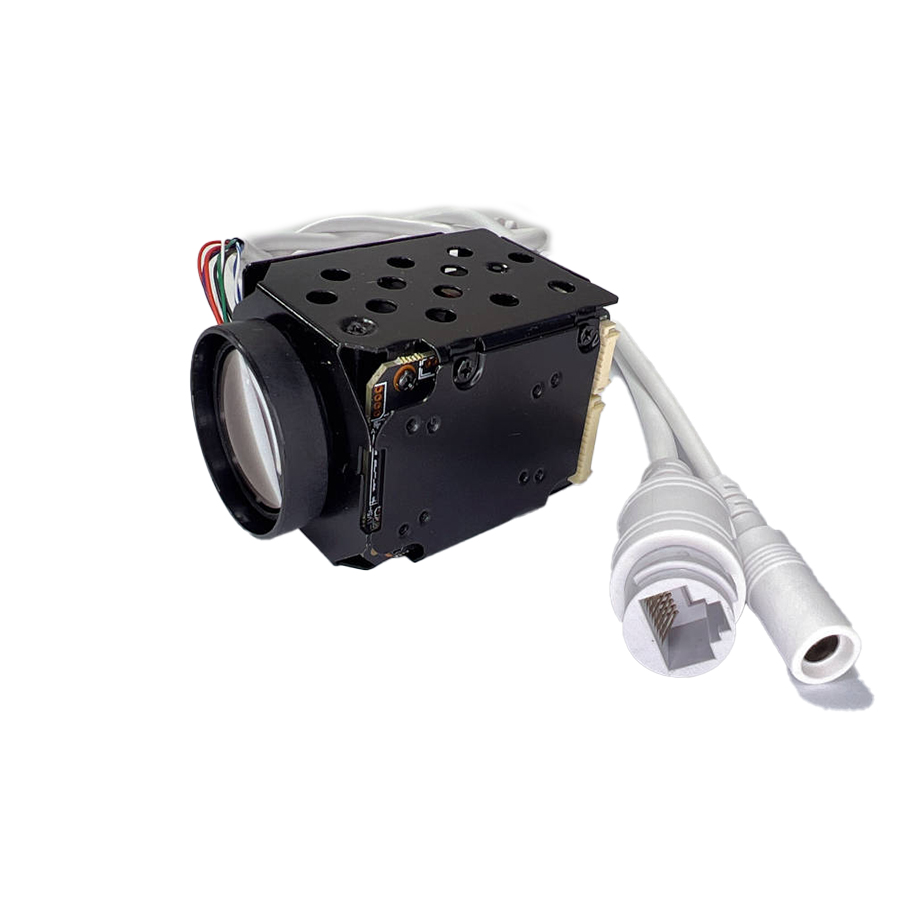

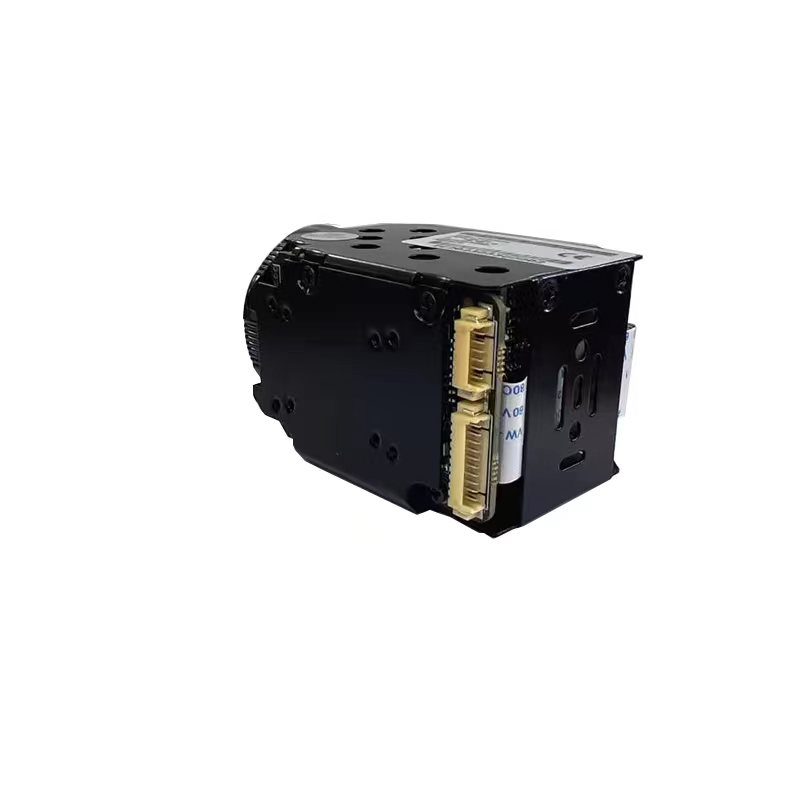

HT7210AM 2MP Network 10X Optical Zoom Module

HT7210AM
2MP Network 10X Optical Zoom Module
Key Features：

● 1/2 .8” Sony IMX307 CMOS Sensor
● With 10X optical zoom capability
● Color：0 . 1Lux@ F1 .2 B/W：0 .01Lux@ F1 .2
● Smart 2D/3D noise reduction algorithms , AE exposure algorithms , night images clean and refreshing
● Support H .265/ H .264 Main profile/ M-JPEG encoded
● Maximum resolution up to 1920x1080@30fps
● Support for motion detection zone and privacy zone settings
● Support TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP
● Support 254 preset positions , 4 preset positions for cruise and horizontal scanning
● Support standard ONVIF 2 .4 protocol

HT7210AM
Image sensor
Sensor	1/2.8" 2MP IMX307 CMOS
WDR	68dB
S/N ratio	≥45dB（AGC OFF）
Exposure Mode	Program mode, shutter mode
Shutter speed	1/2 - 1/20 ,000s，Slow shutter support
D/ N Mode	Auto ICR filter fixed color, external
Shot
Focus distance	5.1mm -51mm,（F1 .6-F2 .5）
Field of View Angle	70 .9 °（near）/ 7 . 1 °（far）
Image resolution
Main stream	1920x1080 /1280x960/ 1280x720@30fps
Sub stream	640 ×480/480x360/352 ×288/320 ×240@30fps
Storage
SD storage	TF card storage（optional）
Network interface
Wired	1ch 10/100BaseT Ethernet，RJ45 interface
Other
Power supply	DC12V
Size	63x49x39mm
Work temperature	-30 ° C ~60 ° C
Working humidity	10%-90% RH（non-condensing）
