IM50L35-10X Automatic Zoom Network Module - Shenzhen CCDCAM Technology Co.,Ltd

● SONY 1/2.8" 5MP IMX335 CMOS image sensor

● 2592 x 1944 resolution, 30/25 fps, automatic zoom

● Color: 0.05Lux@F1.2 : 0.01Lux@F1.2 B/W

● 5X optical fast focusing with clear images

● Support two way audio

● Support multiple night vision modes with dual light

● Smart 2D/3D noise reduction algorithms, AE exposure algorithms, night images clean and refreshing

IM50L35-10X
Image sensor

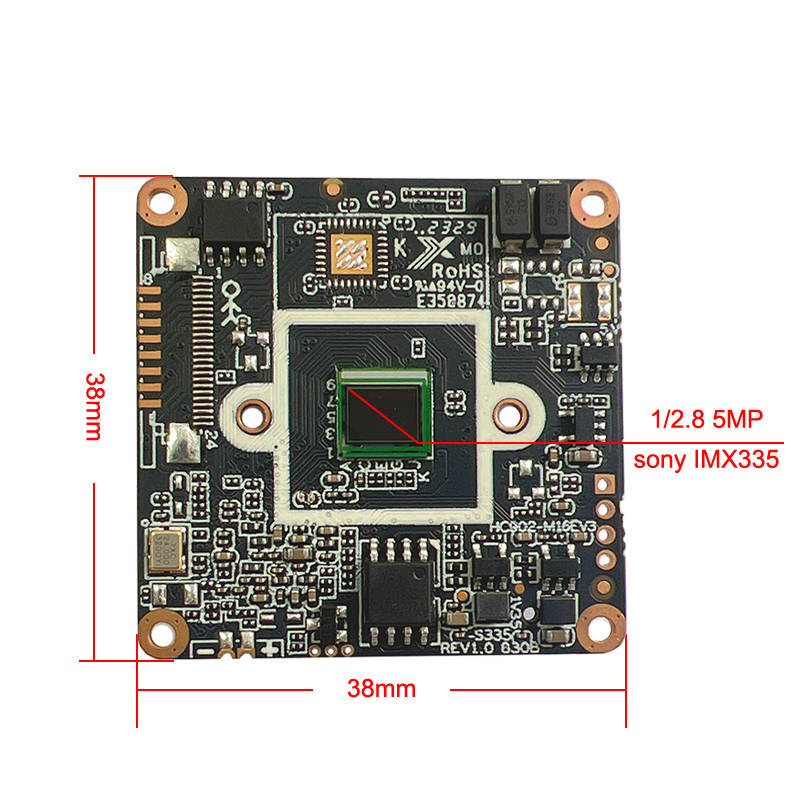

Sensor	1/2.8” 5.0MP CMOS Sony IMX335
Maximum resolution	2592x1944@25/30fps
Minimum illumination	0.05Lux@F1.2(Color mode);0.01Lux@F1.2(Black and white)
Shot
Focal length	5-50mm，F2.36~2.4;
Viewing angle	72 ° (near focus)~7 ° (far focus)
Audio frequency

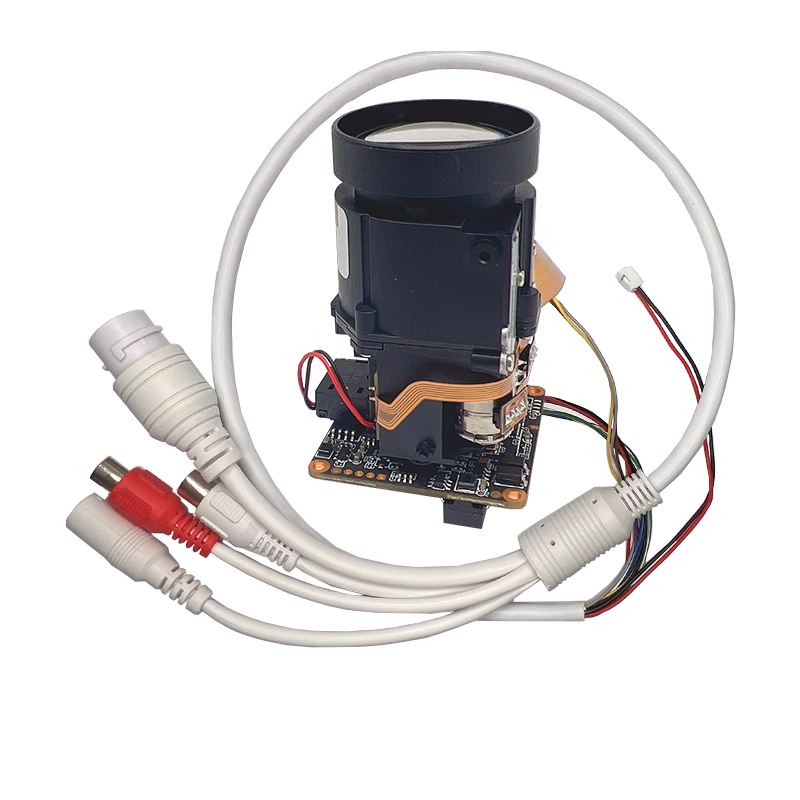

Input	Passive MIC
output	Built in amplifier for direct speaker connection
Function
Lamp control mode	Infrared/White/Dual lamp mode
Support	AI humanoid detection/Motion detection/human detection
Alarm push	Mobile app/SMTP/FTP alarm push
P2P	Android and iOS
Reset	Support hardware reset and unbinding P2P function
Local storage
Storage	TF card storage（up to 128GB）
Local storage	High definition/standard definition options
Recording method	Manual recording, alarm recording
View recording	Support remote video play back
General protocol
Network protocol	TCP/IP, HTTP, NTP, DHCP, UDP, SMTP, RTP, RTSP,ARP
ONVIF protocol	Standard ONVIF
Compatibility	Support access to platforms such as Hikvision,XM CMS,
Network interface
Wired	10/100M RJ45 network interface
Other
Power supply	12VDC@0.20A
Specifications	Encoding motherboard: 38x44mm, overall height: 60mm
Operation temperature	-30°C~60°C
Working humidity	0% -90% RH (non condensing)
