IMA50S37

IMA50S37

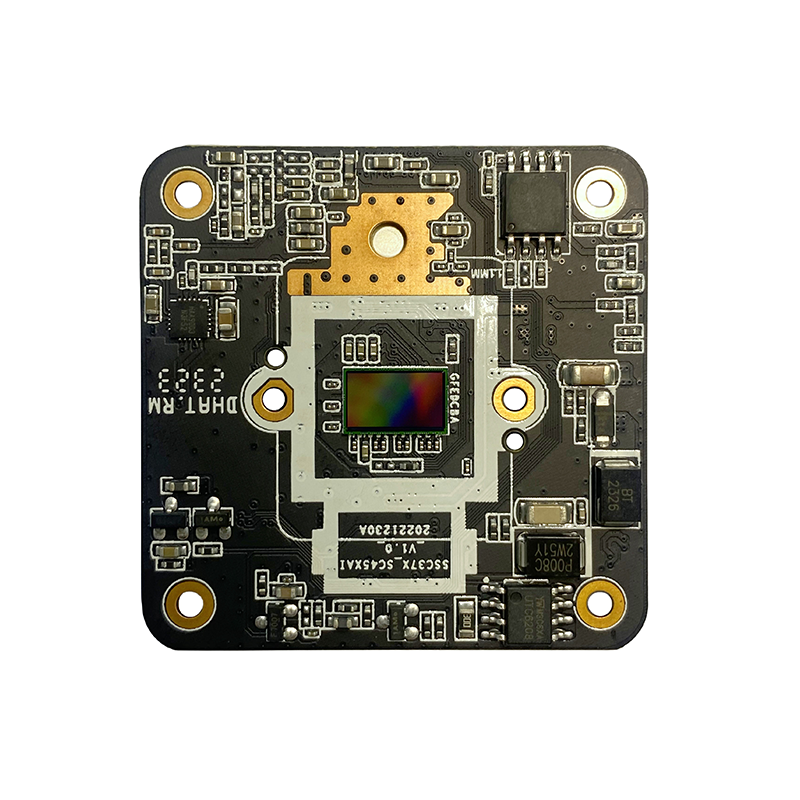

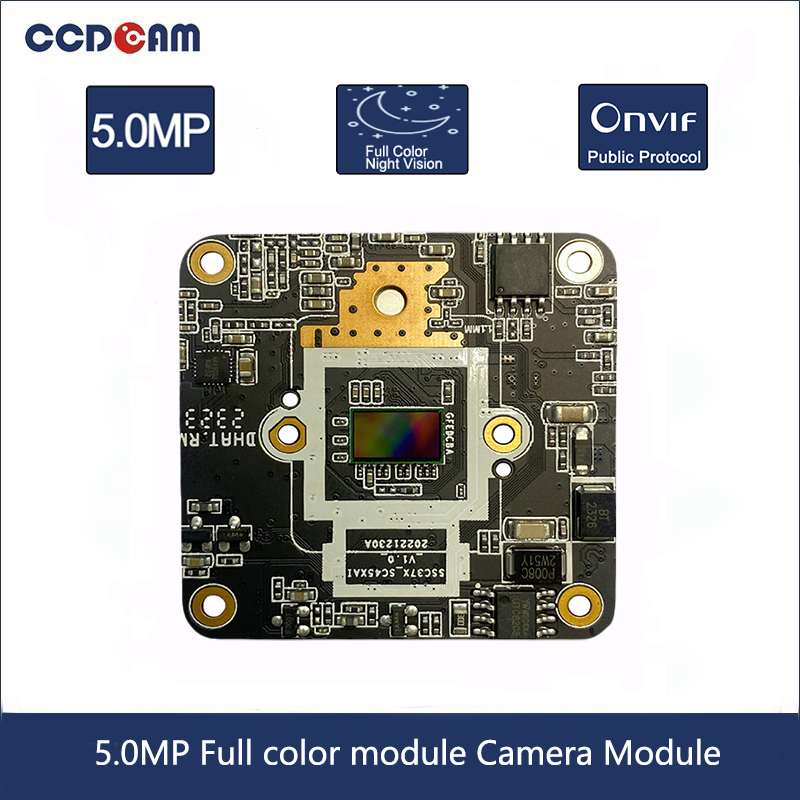

5MP Full color module
Key Features：

● 1/1.8 5MP CMOS sensor
● Supports H.265+, H.265, and H.264 encoding
● Support soft photosensitivity: full-color mode
● Support intelligent analysis: pedestrian detection, vehicle detection, area detection, and Warning line detection
● Support voice intercom, voice broadcasting, and custom voice
● Supports image flipping and DWD
● Support Onvif
● Provide SDK (Windows, Android, Linux) development packages

IMA50S37
Image Sensor
Sensor	1/1.8" CMOS
Maximum Resolution	2880X1620@25fps
Camera
Wide Dynamic Range	Digital WDR
Exposure Mode	Auto/ Manual/shutter mode
White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night	External control（IR Cut Filter）
Compression
Video Compression	H.265+/H.265/H.264 Video encoding
Audio Compression	G711 Supports bidirectional voice intercom and audio video synchronization
Image Resolution
Main Stream	2880×1620/2688×1520/2560×1440/2304×1296/1920×1080/1280×720@25fps
Sub Stream	D1/VGA/640×360
General Protocol
Network Protocol	TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP
ONVIF protocol	Yes
Function
0SD	Yes
Motion Detection	Yes
Humanoid Detection	Yes
Regional detection	Yes
Warning line detection	Yes

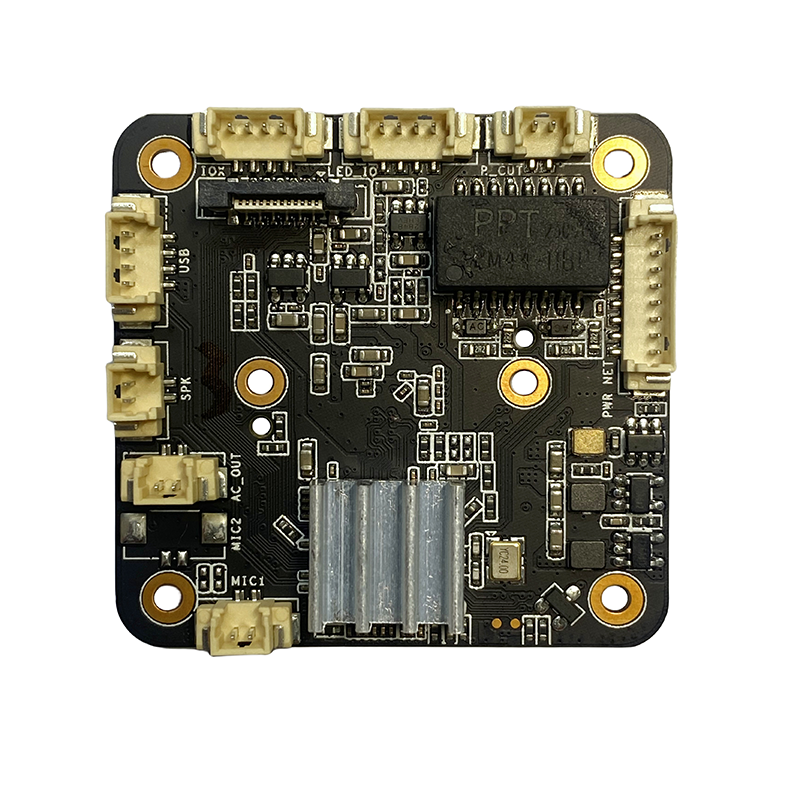

Interface
Network	1ch 10/100 BaseT Ethernet,RJ45 interface
Lamp interfacel	PWM infrared, PWM warm light
Audio	1 channel audio input and 1 channel audio output
USB	reserved
Other
Power Supply	12VDC

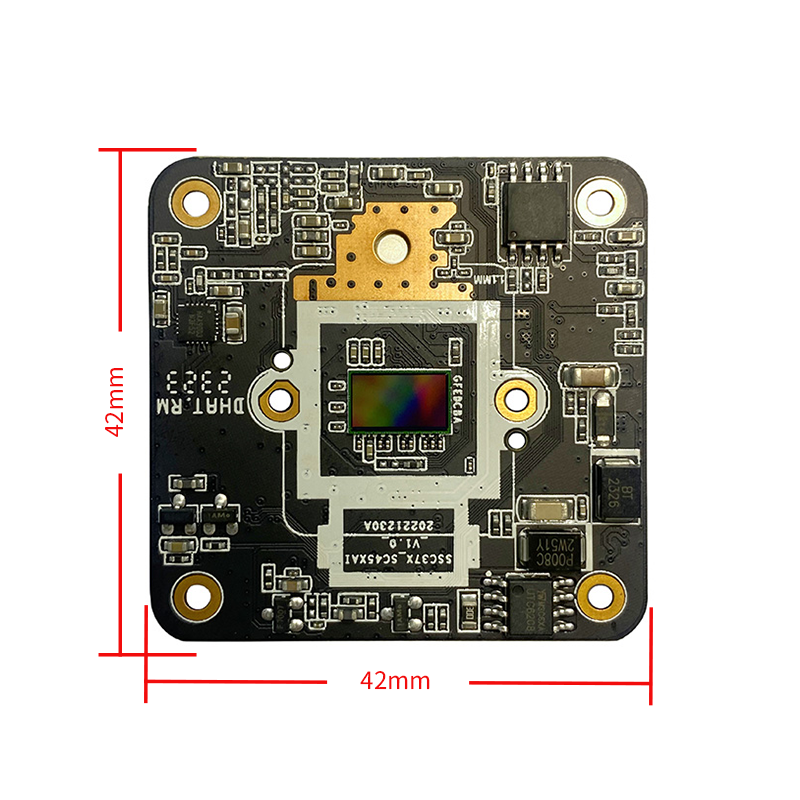

Size	42X42mm
Operation Temperature	-40°C ~65°C
Working Humidity	≤90%RH(non-condensing)
