Model

EC-IW7218CZ

Camera Type

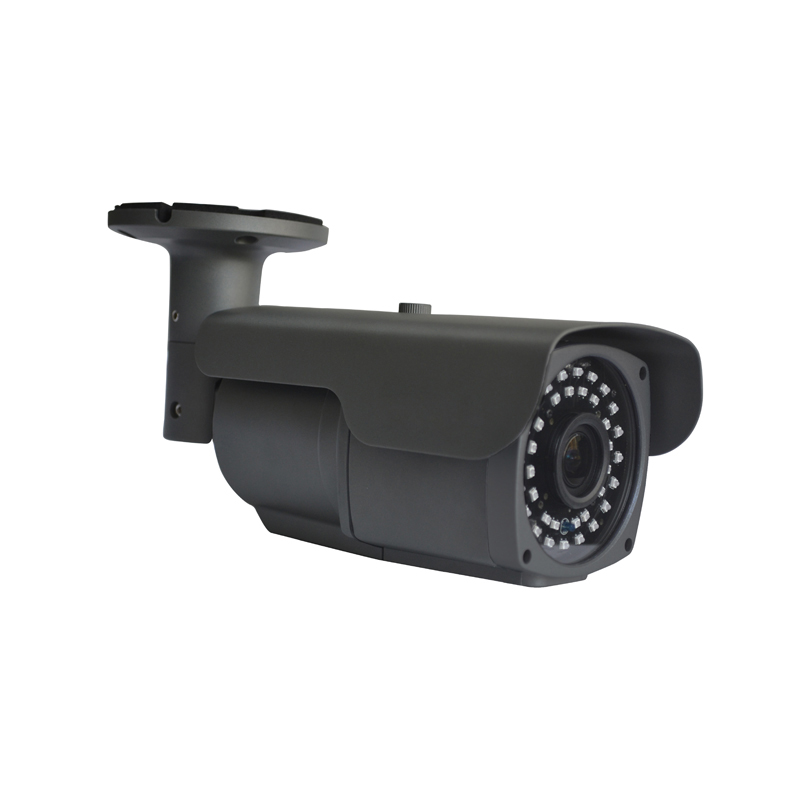

1080P IR Waterproof IP Camera

Camera

Image Sensor

2MP CMOS Sensor

Effective Pixels

1920(H)x1080(V)

IR-LED

36pcs IR led

Illuminate Distance

60m IR distance

Day/Night

IR-CUT filter

Min.Illumination

Color 0.1Lux/F1.2,B/W 0.01Lux/F1.2

Exposure Mode

Auto/Manual/shutter mode

Lens

AF automatic focus and motorized zoom lens

Lens Mount

M12

Compression

Compression standard

H.265/M-JPEG/H.264

Video frames

1920*1080@25fps

Video stream output

Support adjustable stream 0.1M ~ 10Mpbs

Audio coding standard

G711


Resolution

Main Stream: 1920*1080,1-20(25)fps，1280*960，1-25(30)fps；1280*720，1-25(30)fps

Sub Stream: 640*480，1-25(30)fps；480*360，1-25(30)fps；352*288，1-25(30)fps；176*144，1-25(30)fps

Network

Parameter settings

WEB configure and OSD supported, Real time recording,Transmission and
playback

Protocol

TCP/IP，HTTP，NTP，DHCP,RTSP，DDNS，P2P

Intelligent Alarm

Support Motion Detection, Linkage Alarm, Linkage recording,Sensor trigger
alarm functions

Privacy Mask

Support 4 area can be set

Basic

Anti-flicker, Dual stream, Heartbeat, Password protection

Interface

Video output

1CH Video output,Support CVBS standard,PAL/NTSC Optional

Audio input

1CH

Audio output

1CH

Network interface

RJ4510M/100 MEthernet port

Other

Work environment

-10℃~60℃90%RH

Power supply

DC 12V±10%/2.0A
