Model

NVR-116E

Video/Audio Input

IP Video Input

16-ch

Network

Incoming Bandwidth

64Mbps

Outgoing Bandwidth

32Mbps

Remote Users

128

Protocols

P2P, UPnP, DHCP

Video/Audio Output

HDMI/VGA Output

VGA:

1024X768@60,1280X720@60,1280X1024@60,1600X1200@60,1920X1080@50, 1920X1080@60

HDMI:

1024X768@60,1280X720@60,1280X1024@60,1600X1200@60,1920X1080@50, 1920X1080@60, 3840X2160@30

Recording Resolution

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, 3.5mm

Synchronous Playback

4-ch

Corridor Mode Screen

3/4/5/7/9/10/12/16

Decoding

Decoding format

H.265/H.264

Liveview/Playback

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 8MP@30, 1 x 5MP@30, 2 x 4MP@30, 4*3MP@20, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25

Hard Disk

SATA

1 SATA interface

Capacity

up to6TB for each disk

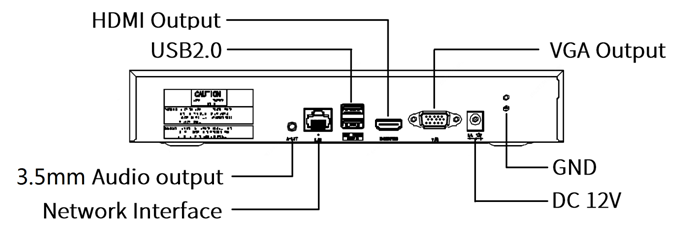

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

General

Power Supply

12V DC

Power Consumption: ≤3.2 W (without HDD)

Working Environment

-10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

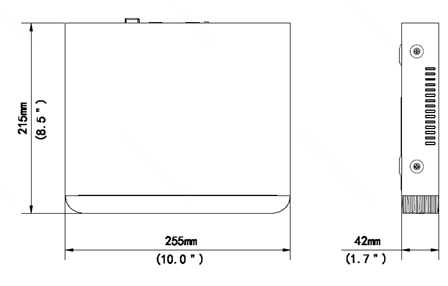

Dimensions (W×D×H)

255mm × 215mm × 42mm (10.0" × 8.5" × 1.7")

Weight (without HDD)

≤1kg (2.2lb)
