Model

XVR-104G

Video/Audio Input

Analog Video Input

4-ch, BNC

IP Video Input

2-ch(only IP up to 6ch), each channel up to 4MP

Supported Analog Camera Types

Support AHD input:

5MP@12fps

4MP@15fps

1080P@30fps

720P@60fps

Support TVI input:

5MP@12fps

4MP@15fps

1080P@30fps

720P@60fps

Support CVI input:

4MP@15fps

1080P@30fps

720P@30fps

Support CVBS input

Audio Input

1-ch, RCA

Two-way Audio

1-ch, RCA

Network

Incoming Bandwidth

48Mbps

Outgoing Bandwidth

60Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

VGA Output

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

HDMI Output

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Audio Output

1-ch, RCA

Synchronous Playback

4-ch

Encoding

Recording Resolution

5MP Lite/4MP Lite/1080P/720P/4CIF/CIF

Recording Frame Rate

Main stream:

5MP Lite@12fps

4MP Lite@15fps

2MP@15fps

720P@30fps

Sub stream:

D1@30fps(Max)

Hard Disk

SATA

1 SATA interface

Capacity

Up to 6TB for each HDD

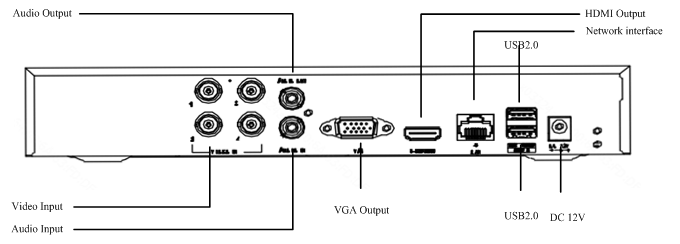

External Interface

Network Interface

1RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel:2 x USB2.0

General

Power Supply

12V DC

Power Consumption: ≤ 8 W( without HDD )

Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

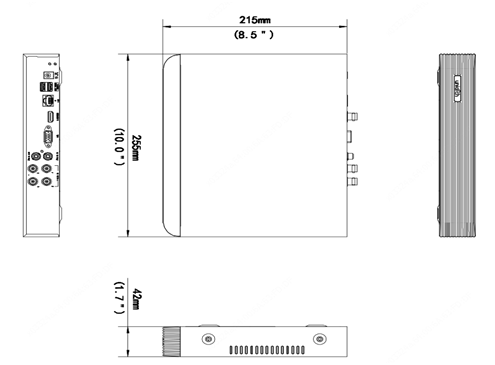

Dimensions(W×D×H)

255mm ×215mm× 42mm (10.0" × 8.5"×1.7")

Weight ( without HDD )

≤1.1 Kg ( 2.42lb )
