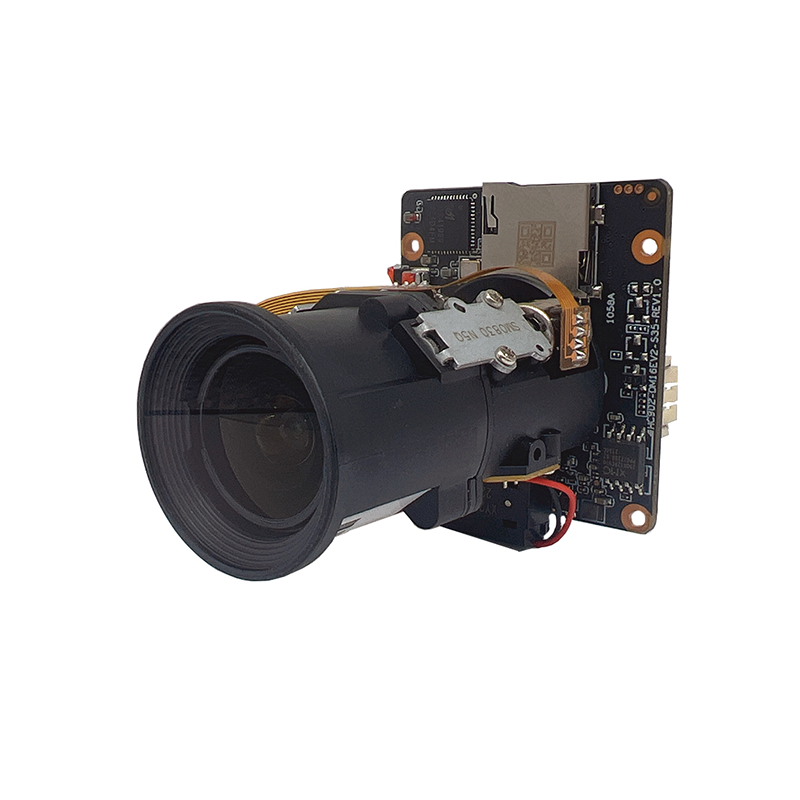

IM50Z35W-5X 5MP 5X WIFI Module

IM50Z33W-5X
5MP 5X Automatic Zoom WIFI Network Module
Key Features：

● 1/2.8 "5MP IMX335 CMOS image Sensor
● Minimum illumination 0.05Lux@F1.2 Colorful, 0.01Lux@F1.2 Black and white
● 5x optical synchronous focusing, with clear images throughout the zoom process
● Two sets of motor drives, capable of directly driving a 12V motor
● Built in audio amplifier, can be directly connected to the speaker, and supports bidirectional voice
● Supports multiple night vision modes with dual light sources/single infrared light
● Intelligent 2D and 3D noise reduction algorithms, AE exposure algorithms, clean and refreshing night scenes

IM50Z35W-5X
Image sensor
Sensor	1/2.8" 5MP Pixel Progressive Scan CMOS
Maximum resolution	2304x1296@20fps
Minimum illumination	0.05Lux@F1.2(Color mode);0.01Lux@F1.2(Black and white)
Shot
Focal length	2.8-12mm，F1.7-F3.0；
Viewing angle	135°(nearfocus)~34°(farfocus)

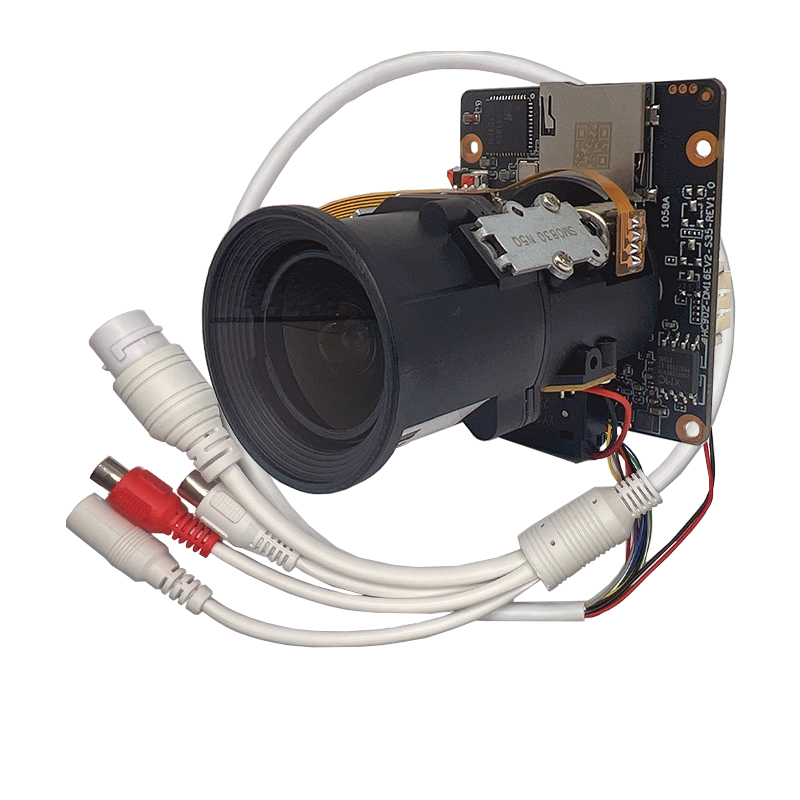

Audio frequency
Input	Passive MIC
output	Built in amplifier for direct speaker connection
Function
Lamp control mode	Infrared/White/Dual lamp mode
Support	AI humanoid detection/Motion detection/human detection
Alarm push	Mobile app/SMTP/FTP alarm push
P2P	Android and iOS
Reset	Support hardware reset and unbinding P2P function
Local storage
Storage	TF card storage（up to 128GB）
Local Storage	High definition/standard definition options
Recording method	Manual recording, alarm recording
View recording	Support remote video play back
General Protocol
Network protocol	TCP/IP, HTTP, NTP, DHCP, UDP, SMTP, RTP, RTSP,ARP
ONVIF protocol	Standard ONVIF
Compatibility	Support access to platforms such as Hikvision,XM CMS,

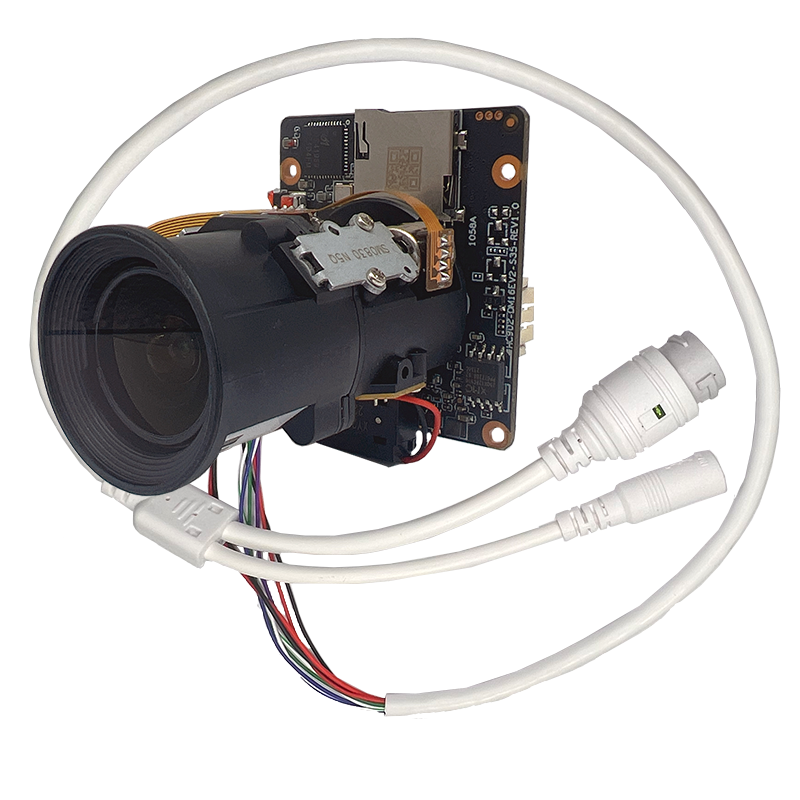

Network Interface
Wred	10/100M RJ45 network interface
WIFI	2.4G, IEEE802.11 b/g/n protocol, supporting WEP, WPA, WPA2
Other
Power supply	12VDC@0.20A
Specifications	Encoding motherboard: 38x44mm, overall height: 60mm
Operation temperature	-30°C~60°C
Working humidity	0% -90% RH (non condensing)
