Image sensor

Model

MC-A52

SOC

SSC377

Sensor

1/3" 5MP CMOS

Maximum resolution

2888 * 1620@20fps

Minimum illumination

 /

Camera

AGC

Auto/Manual

S/N Ratio

/

Shutter speed

/

Wide dynamic range

Digital WDR≥73.7dB

Exposure mode

Auto/ Manual/shutter mode

White balance

Auto/ Manual /ATW/ Indoor/Outdoor/ lamp

Day & Night

 Supported

Image resolution

Main stream

20@FPS 2888*1620，25FPS@（2560*1440，2304*1296，1920*1080，1280*720)

Sub stream

640*360/VGA/D1

Audio resolution

Audio Out/In

Supported/Wired required

Audio processing

G.711 Codec  Standard/ Supports two-way voice intercom and audio-video synchronization.

Protocol

Network protocol

HTTP/RTSP/DHCP/NTP/P2P/ONVIF  etc.

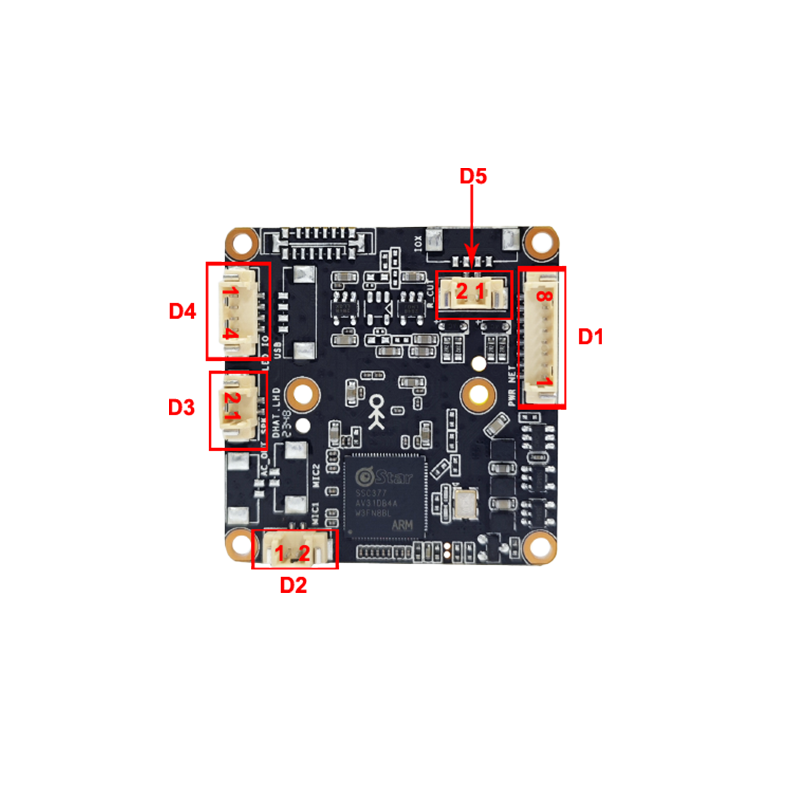

Interface

Network interface

10/100Mps Base-T Ethernet, 1*RJ45 interface

IRCUT interface

Integrated IRCUT switching circuit with automatic, external, manual, and timed control for day/night mode.

Light board interface

PWM yellow light

Storage interface

/

Extra interface

/

General

Power supply

DC 12V   100mA  1.2W  /Protected from lightning

Additional functions

OSD supported/Two way audio/Support  audio and video  synchronously/Voice alarm/Support human detection and customizable zones

Standard

International: IEC61000-4-5  China: GB/T17626.5

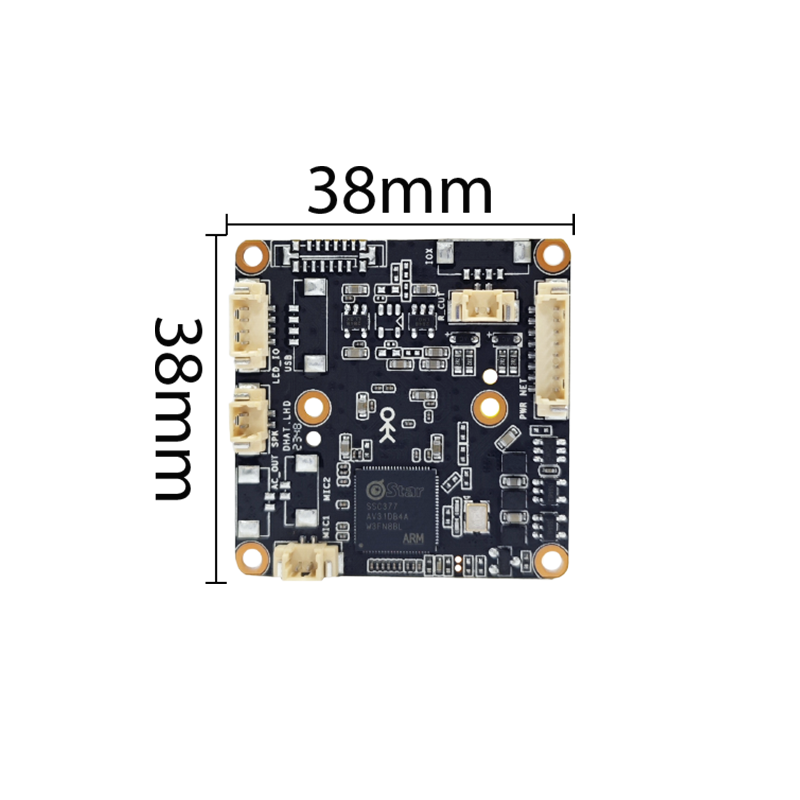

Size

(L)38mm * (W)38mm

Operation temperature

-40°C~+65°C

Working humidity

≤90% RH（non-condensing）
